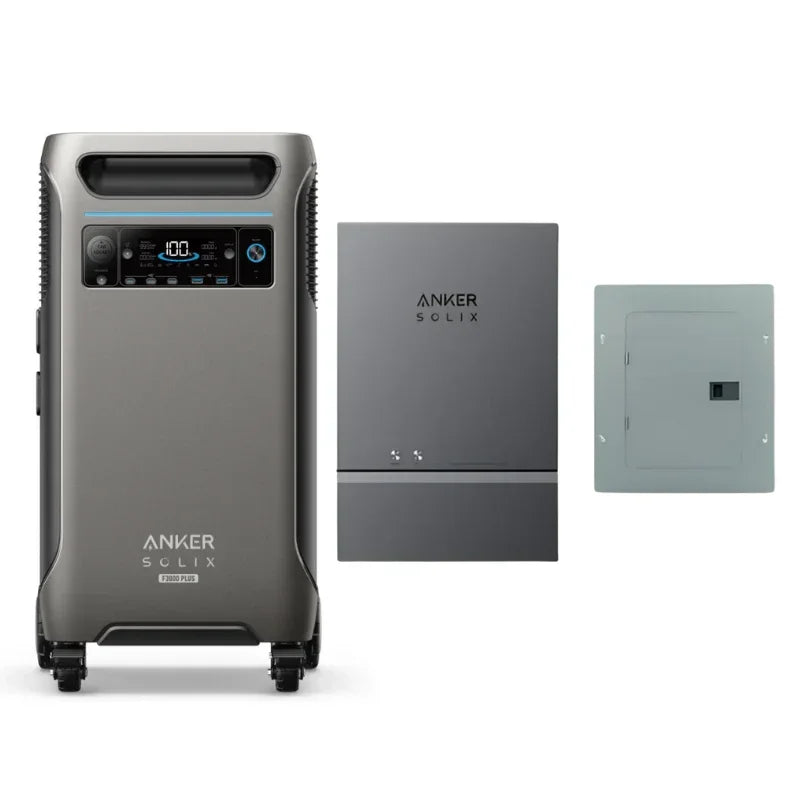

Anker SOLIX F3800 Plus + Home Power Panel + Sub Panel
The Anker SOLIX F3800 Plus + Home Power Panel + Sub Panel is a powerful and versatile home energy solution designed to provide reliable backup power and off-grid energy independence. This all-in-one system seamlessly integrates the F3800 Portable Power Station with the Home Power Panel and Sub Panel, enabling whole-home backup, solar energy storage, and efficient energy management.
Anker SOLIX F3800 Plus + Home Power Panel + Sub Panel Features
Whole-Home Backup Power
Easily power your entire home during outages with a seamless integration into your electrical system. Supports up to 12 circuits with the included Sub Panel.
Expandable Energy Storage
Supports up to 6x BP3800 expansion batteries, delivering a massive 26.9kWh capacity for extended backup power.
Fast & Flexible Charging
Recharge via solar (2400W max), AC (3000W), or generator input, ensuring you always have power when you need it.
Grid-Tied & Off-Grid Capabilities
Operate as a whole-home backup system or in off-grid mode with solar and battery storage.
Anker SOLIX F3800 Plus + Home Power Panel + Sub Panel Applications
- Whole-home backup power for emergencies and outages.
- Off-grid living and energy independence.
- Solar energy storage and optimization.
- High-power appliance operation (AC units, well pumps, refrigerators, etc.).
- RVs, cabins, and mobile home power solutions.
What's Included
Everything you need is included with your product.
- (1) Anker SOLIX F3800 Plus Portable Power Station
- (1) Anker SOLIX Home Power Panel
- (1) Anker SOLIX Sub Panel
- (1) AC Charging Cable
- (1) MC4 3-Port Solar Charging Connector
- (1) User Manual
Anker SOLIX F3800 Plus Portable Power Station Specifications
BATTERY
| Specifications | Details |
| Battery Type | LiFePO4 Cell |
| Cell Part Number | 32140FS-15000mAh |
| Charging Cycle | 3000+ (to 80%) |
| Cell Capacity | 51.2Vdc 75Ah/3840Wh |
INPUT
| Specifications | Details |
| AC Input | 120V~ 15A Max (< 3hrs) / 12A Max (continuous), 60Hz, L+N+PE |
| AC Input Power (Charging) | 1800W Max |
| AC Input Power (Bypass Mode) | 1440W Max |
| Solar Panel Input 1 | 11-165V - 17A Max (1600W Max Each) |
| Solar Panel Input 2 | 11-165V - 17A Max (1600W Max Each) |
| DC Input Port | 60V Max, 120A Max |
OUTPUT
| Specifications | Details |
| Car Charger Output | 12V - 10A |
| Home Panel Power Port | 6000W Max (AC Input), 6000W Max (AC Output), 120V/240V, L1+L2+N+PE |
| AC Output Power (Total) | 6000W Max |
| AC Output 1 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output 2 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output (NEMA L14-30R) | 120V/240V~ 25A Max, 60Hz, 6000W Max |
| USB-A Output | 5V - 2.4A (12W Max Per Port) |
| USB-C Output | 5V - 3A / 9V - 3A / 15V - 3A / 20V - 3A / 20V - 5A (100W Max Per Port) |
UPS
| Specifications | Details |
| UPS | 20ms |
ENVIROMENTAL OPERATION
| Specifications | Details |
| Discharging Temperature | -4°F-104°F / -20°C-40°C |
| Charging Temperature | 32°F-104°F / 0°C-40°C |
DIMENSION
| Specifications | Details |
| Size | 27.6×15.3×15.6 in / 70.2×38.8×39.5 cm |
| Net Weight | 62kg / 136.7lb |
Frequently-Asked Questions
How long can the F3800 Plus power my home?
The runtime depends on the total power load. With 3840Wh capacity, it can run a refrigerator for up to 60 hours or power essential circuits for a full night.
Can I add more batteries later?
Yes! The F3800 supports up to 6x BP3800 expansion batteries, expanding capacity to 26.9kWh.
Is professional installation required?
For the Home Power Panel and Sub Panel, professional installation is recommended for safe integration with your home’s electrical system.
Can this work completely off-grid?
Yes! With solar input (2400W max), you can create a sustainable, off-grid energy system.
