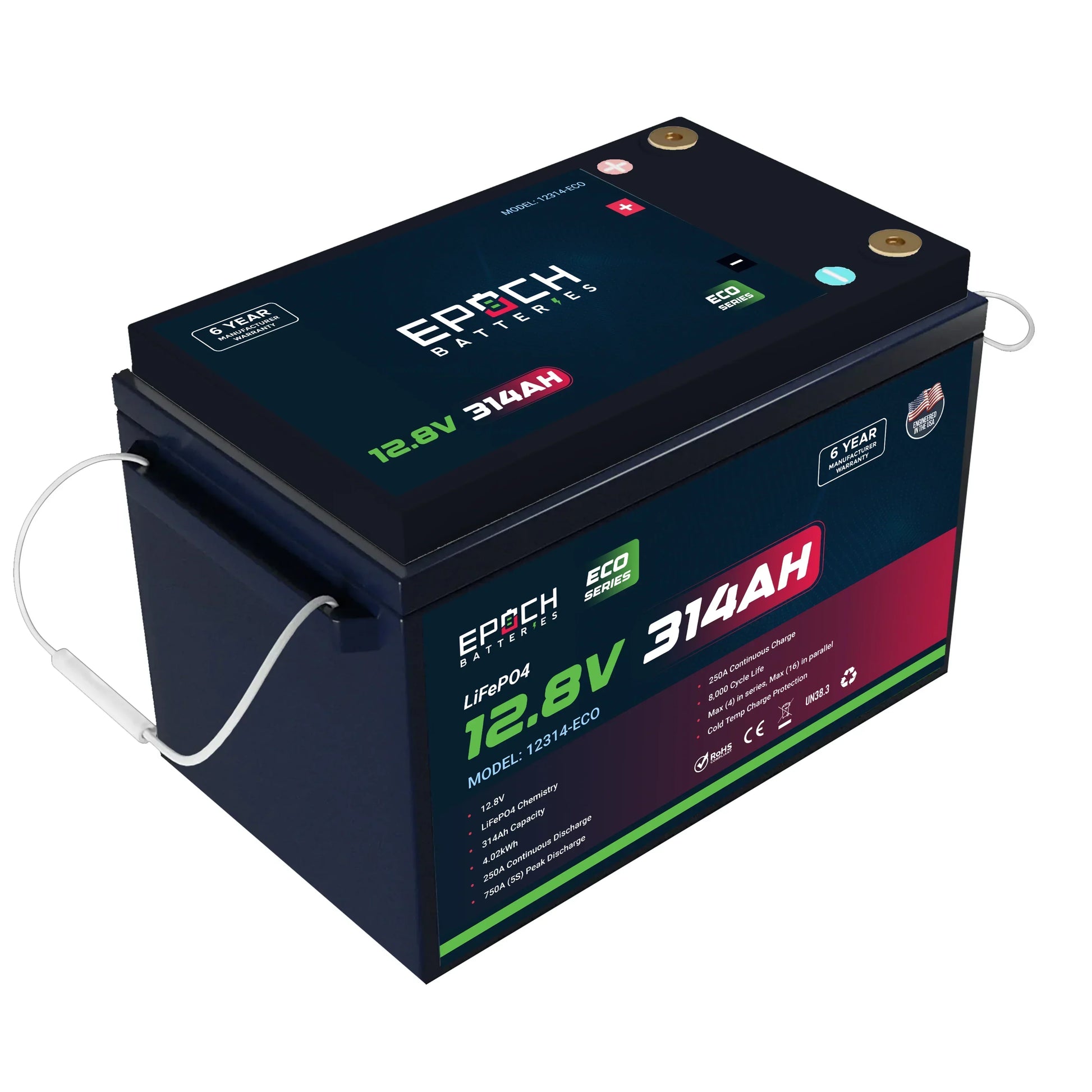

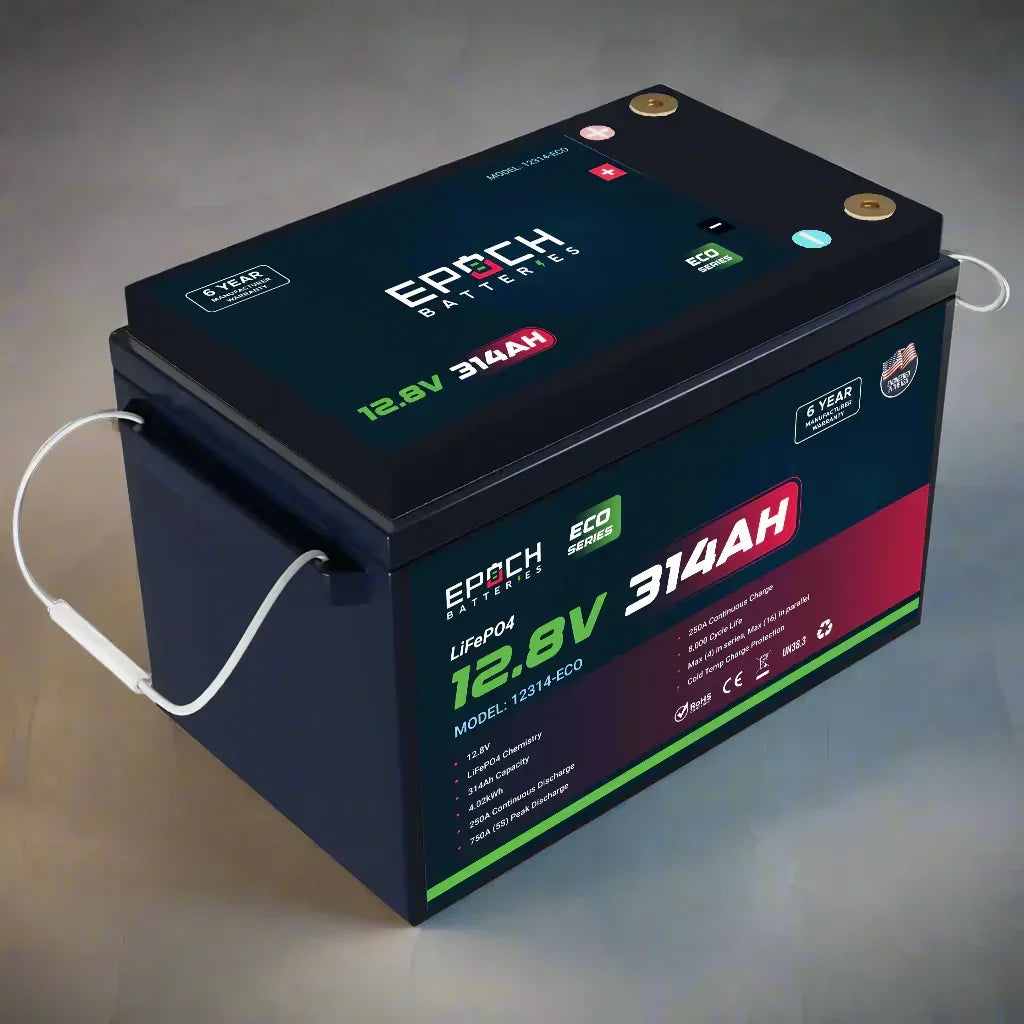

Epoch Batteries 12V 314Ah (4.02kWh) - Eco Series LiFePO4 Battery

Epoch Batteries 12V 314Ah (4.02kWh) - Eco Series LiFePO4 Battery

SKU: 12314-ECO
$849.00 USD
$799.00 USD $849.00 USD
Sale Sold out
Shipping calculated at checkout.
Why We Call It Red Chair Time ❤️ - Click to Read
Up north at the lake, life was simple—fishing, boating, bike rides, and sun-soaked afternoons. But the heart of it all was my mother, who loved nothing more than relaxing on the patio in her Tall Red Shellback Adirondack Chairs, surrounded by family and friends.

When she lost her battle with cancer in 2023, I started Red Chair Time to honor her and help others still fighting. Those chairs symbolized comfort, connection, and peace—and now, every piece we sell carries that spirit forward.

This isn’t just about selling and living the lake life. It's about a life with purpose. A portion of every purchase supports cancer research, because our mission is personal. We’re here to create beautiful spaces—and to fund hope.

Thank you for visiting!


__________________________________________________

Epoch Batteries 12V 314Ah (4.02kWh) - Eco Series LiFePO4 Battery

  • LiFePO4 Chemistry - Deep Cycle Battery
  • Group 24: L10.25" x W6.75" x H9.00"
  • Low-Temperature cut-off (Charge Protection)
  • Built-in Smart Battery Management System (BMS)
  • Advanced BMS system with 20+ safety features built in
  • Over charge and over discharge protection
  • Over current and short circuit protection
  • High & low temperature disconnects
  • Max (4) in Series up to 48V
  • Max (16) in Parallel up to 20.48 kWh
  • 4,500+ Cycle life & Maintenance-free
  • 6 Year Manufacturer Warranty

Specifications

Cell Configuration: 4S1P
Chemistry: LiFePO4
Current
Ah Capacity: 314Ah
Max Continuous Discharge Amps: 250A
Max Charge Current Amps: 250A
Max Discharge Peak Current Amps: 750A (5 Seconds)
Series | Parallel: Max (4) in Series, Max (16) in Parallel
Voltage
Voltage: 12.8V
Max Charge Voltage: 14.6V
Operating Voltage Range: 10.0 - 14.6V
Temperature
Charge Temp Range: 0°C (32°F) / 55°C (131°F)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F)

Weights & Dimensions

Weight: 57 (LBS)
Dimensions
Length: 13.75" @ Base, 15.5" @ Handles (inches)
Width: 7.63" (inches)
Height: 10.0", 10.5' with Terminal Bolts (inches)
s)

Recommended Charge Settings

To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
Bulk/Absorption: 14.2V – 14.6V
Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
Float: 13.4V – 13.8V
Equalization: 14.4V/ Disabled
Temperature Compensation: 0/Disabled
Charge Rate: 50% of the battery or battery bank capacity
Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
