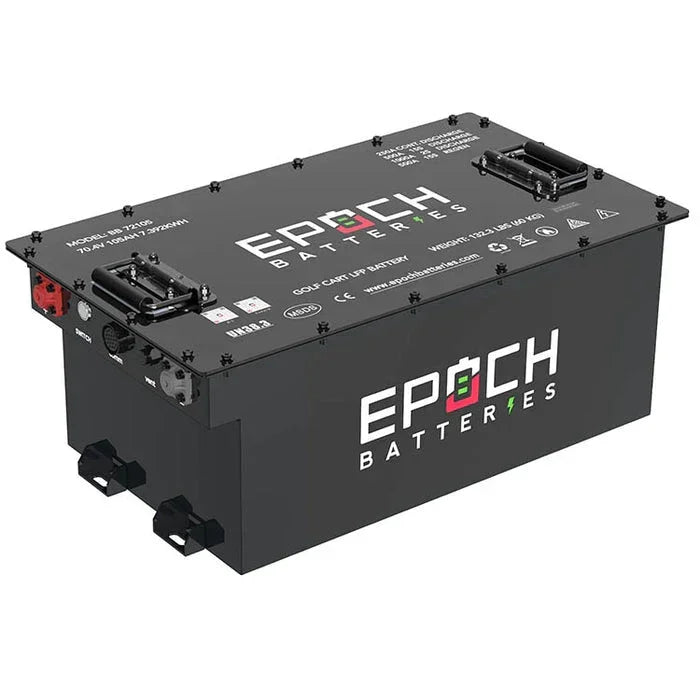

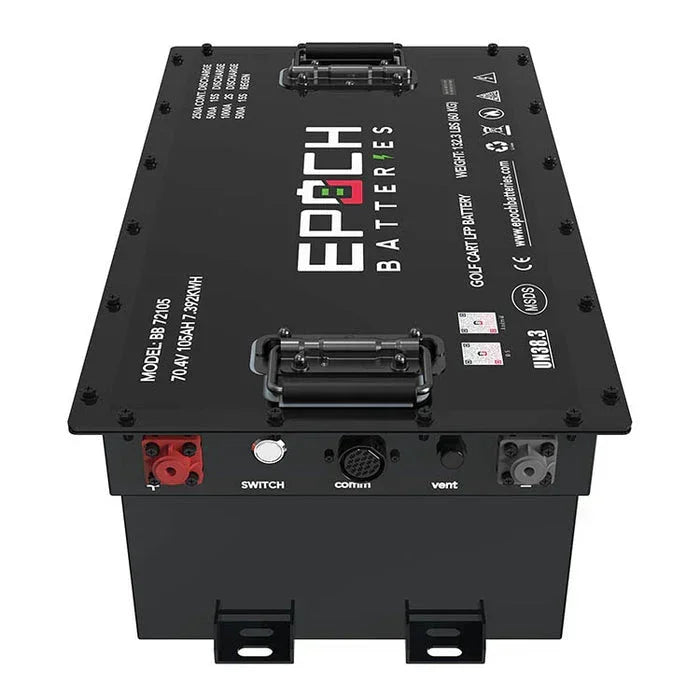

Epoch Batteries 70.4V (72V) 105ah - LiMax Series - Lithium LiFePO4 Golf Cart Battery - Complete Kit
Upgrade your ride with the ultimate power solution: the Complete Lithium Conversion Kit. Designed for serious performance and reliability, this kit includes everything you need to modernize your setup, featuring a 72V 15A lithium charger, battery gauge, and 12V converter. With built-in Bluetooth connectivity for iOS and Android devices, you can monitor your system in real time and even receive over-the-air firmware updates to keep your system running at its best. Engineered for demanding applications, the system delivers a powerful 250A max continuous discharge, with peak capabilities of 500A at 15 seconds and an impressive 1000A at 2 seconds.
Built to last, this lithium conversion kit boasts a 3,500-cycle life and is backed by an industry-leading 11-year warranty for peace of mind. The battery supports a 100A max continuous charge and a 500A peak charge/regen at 15 seconds, ensuring rapid recovery and sustained high performance. Whether you're upgrading a golf cart, utility vehicle, or custom application, this kit offers unmatched durability, advanced monitoring features, and the serious power you need for superior all-day performance.
Features
- Complete Lithium Conversion Kit

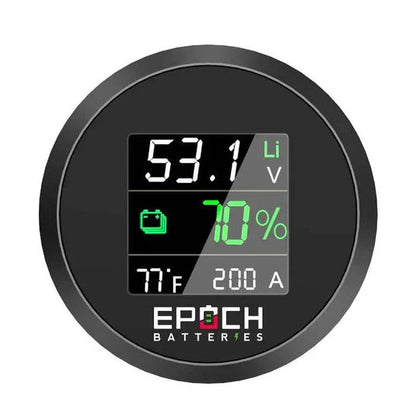

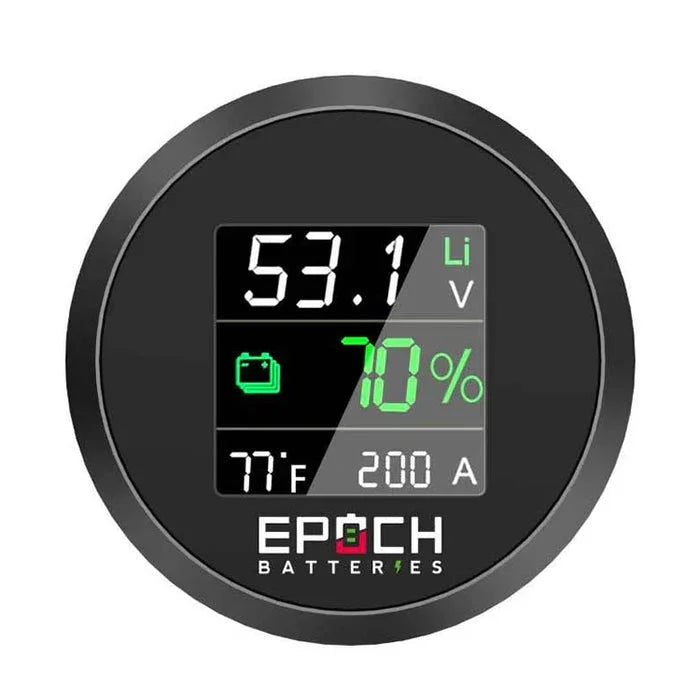

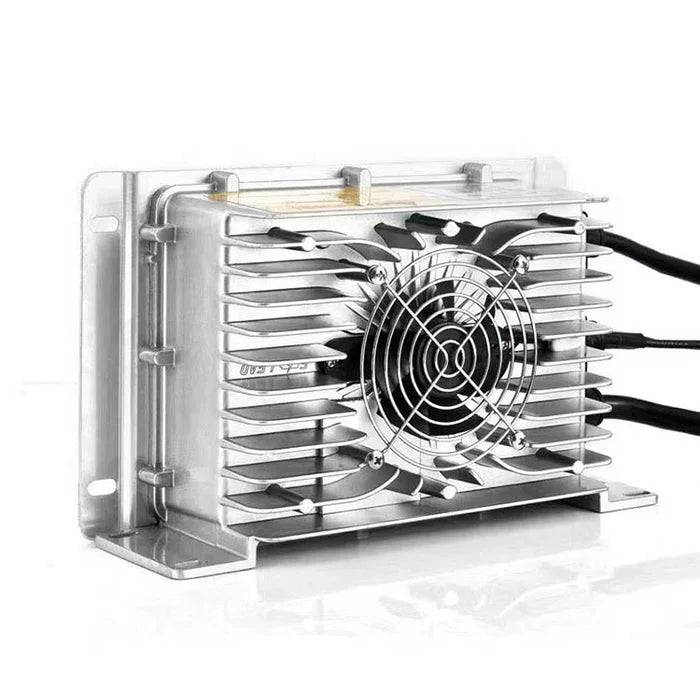

- 72V 15A Lithium Charger, Battery Gauge, 12V Converter INCLUDED
- Bluetooth App (iOS & Android)
- Over the air firmware updates available
- 250A Max Continuous Discharge
- 500A @ 15s, 1000A @ 2s Peak Discharge
- 100A Max Continuous Charge
- 500A @ 15s Peak Charge/Regen
- 3,500 Cycle Life
- 11 Year Warranty
Specs
- Configuration
- Cell Configuration: 1P22S
- Chemistry: LiFePO4
- Current
- Ah Capacity: 105Ah
- Max Continuous Discharge Amps: 250A
- Max Charge Current Amps: 105A Continuous, 500A @ 15s
- Max Discharge Peak Current Amps: 500A @ 15s, 1000A @ 2s
- Voltage
- Voltage: 70.4V
- Max Charge Voltage: 79.2V
- Operating Voltage Range: 55.0V - 79.2V
- Temperature
- Charge Temp Range: 0°C (32°F) / 55°C (131°F)
- Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
- Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)
Weight & Dimensions
- Weight: 132lbs
- Length: 21.7 (inches)
- Width: 13.4 (inches)
- Height: 9.9 (inches)
Recommended Charging Settings
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
- Bulk/Absorption: 14.2V – 14.6V
- Absorption Time: Two batteries in parallel connections require 30 minutes (200Ah)
- Float: 13.4V – 13.8V
- Equalization: 14.4V / Disabled
- Temperature Compensation: 0 / Disabled
- Charge Rate: 50% of the battery or battery bank capacity
- Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
- Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
- Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
