Magnum Peak T5

Magnum Peak T5

SKU: Peak T5 - BLK
$1,699.00 USD
$2,299.00 USD $1,699.00 USD
Sale Sold out
Shipping calculated at checkout.
Color
Battery
Why We Call It Red Chair Time ❤️ - Click to Read
Up north at the lake, life was simple—fishing, boating, bike rides, and sun-soaked afternoons. But the heart of it all was my mother, who loved nothing more than relaxing on the patio in her Tall Red Shellback Adirondack Chairs, surrounded by family and friends.

When she lost her battle with cancer in 2023, I started Red Chair Time to honor her and help others still fighting. Those chairs symbolized comfort, connection, and peace—and now, every piece we sell carries that spirit forward.

This isn’t just about selling and living the lake life. It's about a life with purpose. A portion of every purchase supports cancer research, because our mission is personal. We’re here to create beautiful spaces—and to fund hope.

Thank you for visiting!


__________________________________________________

The Peak T5 begins where the road ends! It has a torque pedal assist sensor that combines power from the rider and the motor for the ultimate in smoothness and control. A wide range drive train and a robust power system make the Peak T5 an ideal choice for trail riding.

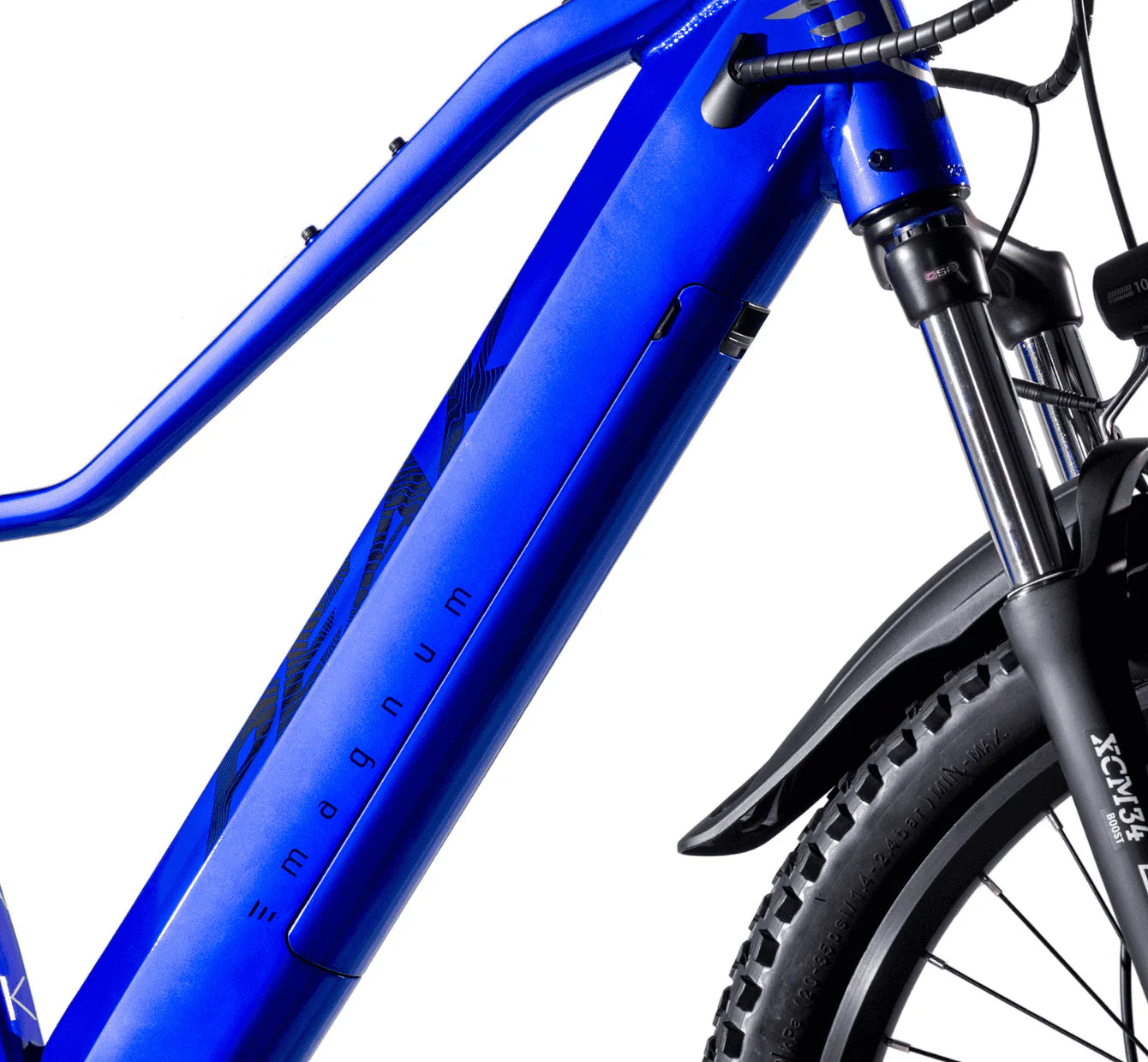

THE BATTERY.

A UL-certified 48V 14.4Ah Samsung battery with 691Wh of capacity — built for long days on the trail or around town. It looks fully integrated and sleek, but removes easily for charging on or off the bike. A built-in battery indicator shows your state of charge at a glance.

14.4Ah

50 miles (80 Kilometers) Max Range

6 Hours Charge Time

RIDE YOUR WAY.

Torque sensor with cadence mode — switchable on the fly

The Peak 2.0 uses a digital torque plate that senses your input and amplifies it — giving you a natural, responsive ride that feels like your legs just got an upgrade. But when you want to cruise without the effort — sprained ankle, lazy Sunday, long flat stretch — toggle to cadence mode right from the display. No tools, no fuss. Just the ride you want, when you want it.

Mechanical Details

Frame material: Aluminum Alloy

Frame Type: High-step MTB Trail, Frame-integrated display, integrated battery

Fork Details: SR Suntour XCM 34 BOOST 140mm travel, preload/compression/lockout, through-axle

Gearing details: Microshift Advent X 10-speed with Clutched Derailleur, 11-48T cassette

Shifter Details: Microshift Advent X Trail Pro 10-speed, silicone-padded levers

Crank: Aluminum Alloy 170mm

Pedals: Wide alloy Platform with Reflectors

Stem: Magnum Mountain 60mm Stem

Brakes: Tektro Hydraulic Disc Brakes, 180mm rotors front & rear

Grips: Lock-on ergonomic MTB

Saddle: Selle Royal Essenza +

Tire: CST Patrol 27.5” x 2.8” knobby

Wheel size: 27.5 inch

Fenders: Lightweight Front & Rear (included); Full Coverage available

Chain: KMC X10

Electrical Details

Motor Brand: Sutto by Bafang

Motor Type: Hub-Drive; brushless; planetary geared

Motor Nominal Output: 500 Watts

Motor Peak Output: 800 Watts

Battery Voltage: 48 Volts

Battery Ah: 14.4Ah

Battery Wh: 720Wh

Battery Chemistry: Samsung 21700, Li-NMC, UL2271 & UL2849 Certified

Battery Charge Time (from empty): 7.5 Hours

Maximum Range: 50 miles (80 Kilometers)

Display Type: VeloFox Frame-Integrated Color Display

Display Readouts: Battery Level, Assist Level, Current Speed, Power, Trip Distance, Odometer, Trip Time, 12hr clock

Assist Modes: Torque Sensor Pedal Assist, Cadence Pedal Assist, Thumb Throttle, Walk Mode

Top Speed: Up to 28 mph with Pedal Assist, 20 mph with Throttle

Lights: Integrated 100 lumen front light (rear brake light rack-mounted, available separately)

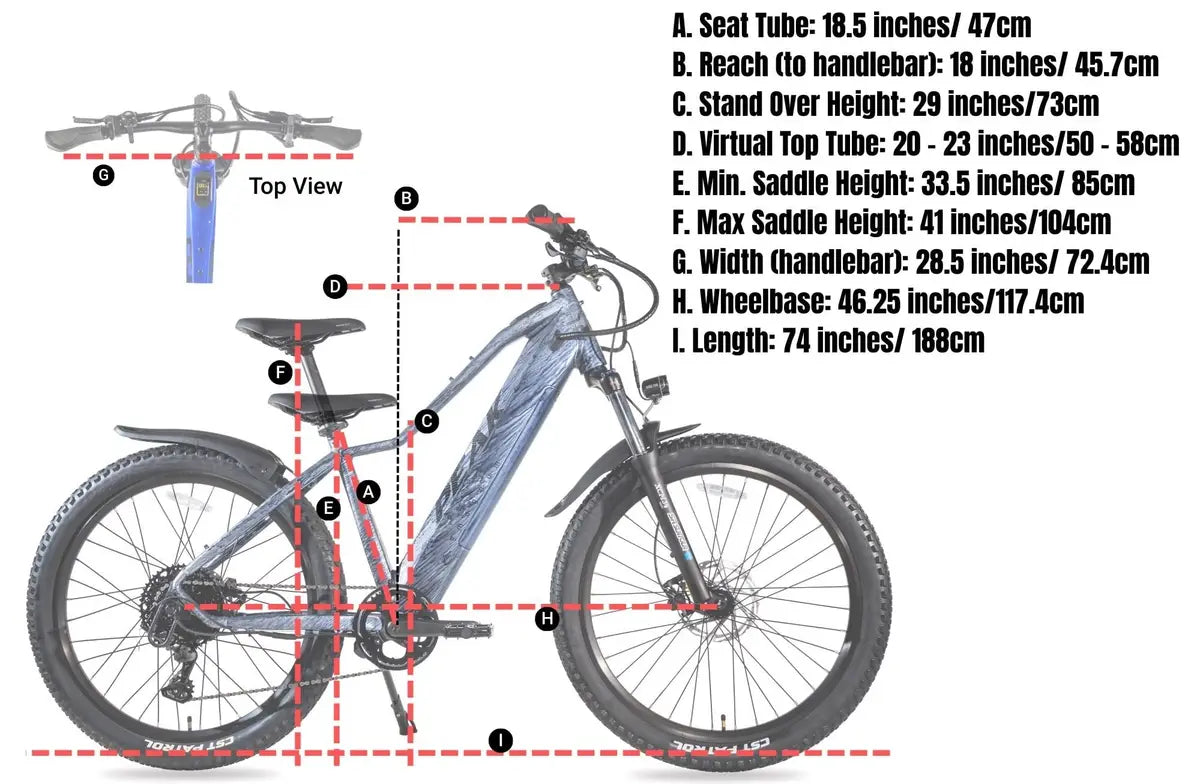

Measurements

Seat Tube: 18½" (47 cm)

Reach: 18" (45.7 cm)

Stand Over Height: 29" (73 cm)

Virtual Top Tube Length: 20–23" (50–58 cm)

Min Saddle Height: 33.5" (85 cm)

Max Saddle Height: 41" (104 cm)

Width: 28.5" (72.4 cm) | Handlebar

Wheelbase: 46.25" (117.4 cm)

Length: 74" (188 cm)

Total Weight: 66 lbs (30 kg)

Battery Weight: 9.3 lbs (4.2 kg)

Recommended Minimum Rider Height:

Max Load Capacity: 330 lbs. (150 kg)

What's Included

Kickstand: Center-Mounted Single Side Adjustable Length

Bell: Bell with AirTag/M-Tag compatibility (tracking device sold separately)

Charger: 54.6V 2A Charger

Front Rack: Compatible with Magnum Multi-Purpose Cargo Basket (basket sold separately)

Rear Rack: Optional — rear carrier rack available (sold separately)

Fenders: Lightweight Front & Rear (included)

Accessory Mounts: Built-In Head Tube and Top Tube Accessory Mounts
