Magnum Pilot Hub Commuter

Magnum Pilot Hub Commuter

SKU: 23150014
$1,799.00 USD
$2,099.00 USD $1,799.00 USD
Sale Sold out
Shipping calculated at checkout.
Color
Battery
Why We Call It Red Chair Time ❤️ - Click to Read
Up north at the lake, life was simple—fishing, boating, bike rides, and sun-soaked afternoons. But the heart of it all was my mother, who loved nothing more than relaxing on the patio in her Tall Red Shellback Adirondack Chairs, surrounded by family and friends.

When she lost her battle with cancer in 2023, I started Red Chair Time to honor her and help others still fighting. Those chairs symbolized comfort, connection, and peace—and now, every piece we sell carries that spirit forward.

This isn’t just about selling and living the lake life. It's about a life with purpose. A portion of every purchase supports cancer research, because our mission is personal. We’re here to create beautiful spaces—and to fund hope.

Thank you for visiting!


__________________________________________________

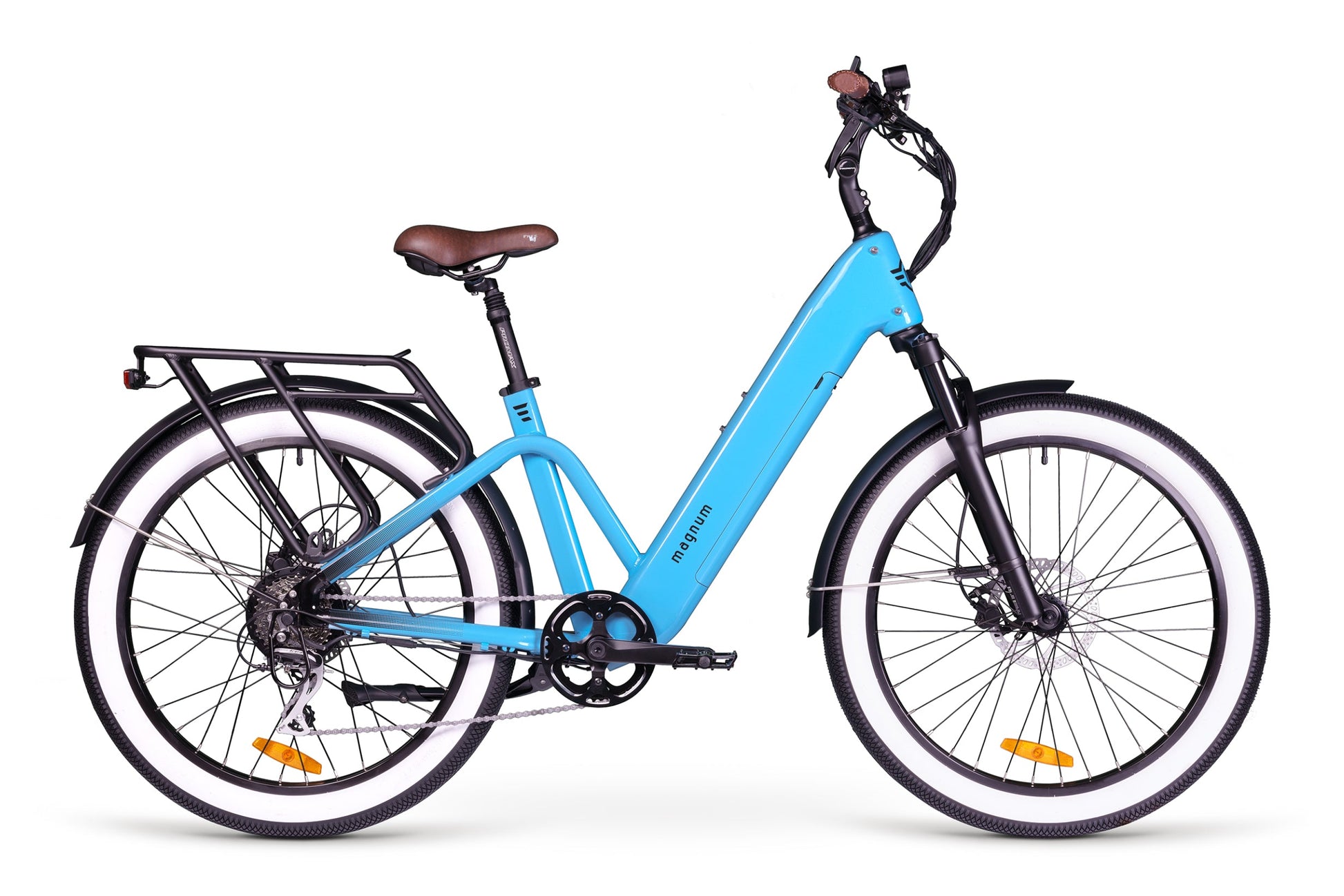

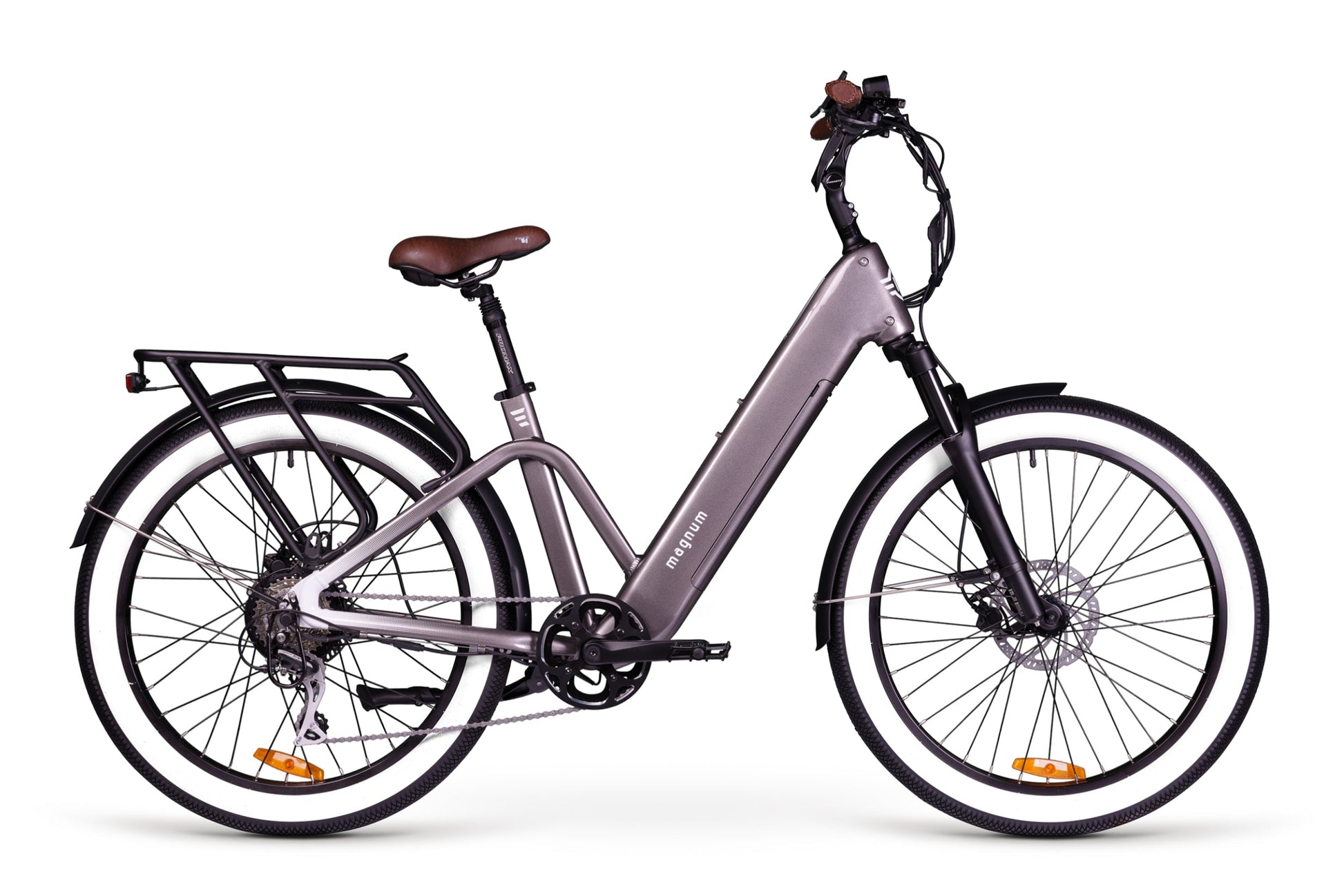

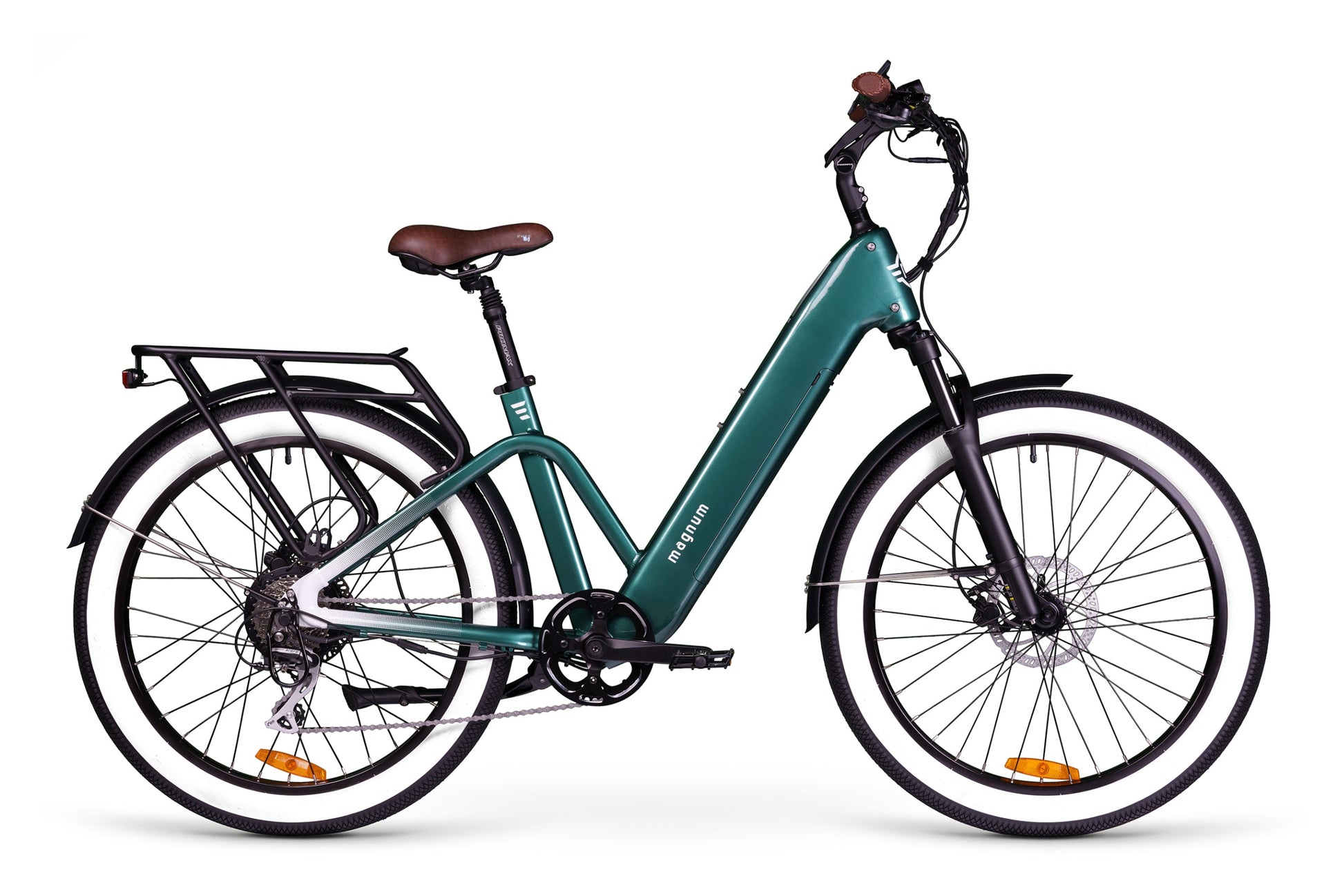

This timeless e-bike design can take you up to 50 miles per charge thanks to its fully integrated and color-matched 15Ah battery. The Pilot features a convenient low-step frame with a responsive torque sensor and throttle. Feel the power and the beauty of the new Pilot Hub.

THE BATTERY.

The Pilot Hub’s fully integrated 15Ah battery lasts up to 50 miles per charge. It surpasses UL certification standards and is color-matched for a classic appearance.

15Ah

50 miles (80 Kilometers) Max Range

7.5 Hours Charge Time

RESPONSIVE PAS CONTROL

Smooth torque sensor

Cadence sensors only respond to how quickly you pedal — but the Pilot Hub’s torque sensor focuses on effort. Pedal casually for light assistance or go all out to get more power!

Mechanical Details

Frame material: Aluminum Alloy

Frame Type: Low-step

Fork Details: Suspension 100mm travel with Lock-Out

Gearing details: Shimano 8 Speed 11-32T

Shifter Details: Shimano 8-Speed

Crank: Aluminum Alloy 170mm

Pedals: Wellgo

Stem: Tool-free Adjustable

Brakes: Tektro Hydraulic

Grips: Brown Faux Leather

Saddle: Selle Royal Freeway

Tire: 26 x 3.0

Wheel size: 26”

Fenders Front and Rear Included

Chain: KMC 8-Speed

Electrical Details

Motor Brand: Bafang

Motor Type: Hub-Drive

Motor Nominal Output: 500W

Motor Peak Output: 750 Watts

Battery Voltage: 48 Volts

Battery Ah: 15Ah

Battery Wh: 720Wh

Battery Chemistry: Li-NMC, UL2271 & UL2849 Certified

Battery Charge Time (from empty): 7.5 Hours

Maximum Range: 50 miles (80 Kilometers)

Display Type: Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD

Display Readouts: Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time

Assist Modes: Torque Sensor Pedal Assist, Thumb Throttle, Walk Mode

Top Speed: Up to 28 mph with Pedal Assist, 20 mph with Throttle

Lights: Integrated front and rear lights

Measurements

Seat Tube: 17.5" (44 cm)

Reach: 16.75" (42.5 cm)

Stand Over Height: 19.25" (49 cm)

Virtual Top Tube Length: 23.25" (59 cm)

Min Saddle Height: 23" (58 cm)

Max Saddle Height: 29.25" (74 cm)

Width: 27" (69 cm)

Wheelbase: 48" (122 cm)

Length: 76" (193 cm)

Total Weight: 74.5 lbs (33.75 kg)

Battery Weight: 8.5 lbs (3.9 kg)

Recommended Minimum Rider Height: 5'0"

Max Load Capacity:

What's Included

Kickstand: Includes Center-Mounted Single Side Adjustable Length Kickstand

Bell: Includes Bell

Charger: Includes 54.6V 2A Charger

Front Rack: N/A

Rear Rack: Includes Rear Rack

Fenders: Includes Front and Rear Fenders

Accessory Mounts: Includes Built-In Head Tube and Top Tube Accessory Mounts
