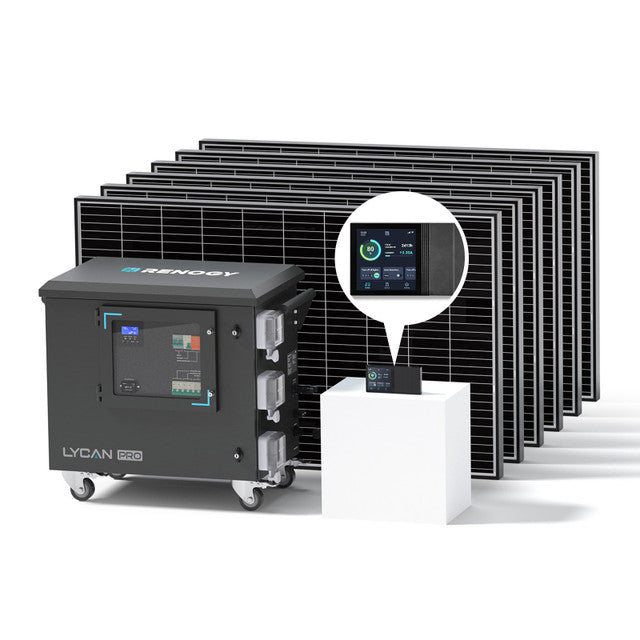

Renogy Advanced Plus Kit
Renogy’s Advanced Plus Kit gives you more power capacity to enjoy your off-grid life. It’s the most comprehensive and powerful package available. Its self-contained structure provides a simple plug-and-play DIY installation. The efficient design yields a smaller footprint to help you optimize space. It’s Bluetooth equipped allowing for 24/7 monitoring and automation with smart plugs to turn your tiny home into a smart tiny home with unlimited off-grid days.
Power up your appliances indefinitely
All you need for your off grid tiny home, powered by the sun
Specifications
320 Watt Monocrystalline Solar Panel | |
---|---|
Maximum Power at STC: 320W | Optimum Operating Voltage (Vmp): 33V |
Open-Circuit Voltage (Voc): 40.3V | Optimum Operating Current (Imp): 9.7A |
Short-Circuit Current (Isc): 10.23A | Operating Temperature: -40°F to 185°F |
Cell Efficiency: ≥22% | Maximum System Voltage: 1000V DC (UL) |
Maximum Series Fuse Rating: 15A | Weight: 39.7lbs |
Dimensions: 65.6 x 39.4 x 1.4 in | Certifications: CE, ISO, UL |
RENOGY LYCAN | |
Protection Rating: IP55 | Cooling Method: Fan |
Operating Temperature Range: 14°F~122°F / -10°C~50°C | Operating Relative Humidity Range: 5%~95% |
Expansion Connector: Anderson 120A Connector, RJ45 Female Connector | Expansion Capability: 19.2KWh |
Self Consumption: 25W (Power Saving Mode) | Bluetooth Module: DC Home APP. Communication Range 82 ft. / 25 m |
Installation Environment: Indoor/Outdoor | Dimension: 32.9 x 20.0 x 28.5 inch / 835 x 508 x 724 mm |
Weight: 264.6 lbs. / 120 kg | |
RENOGY SMART PLUG | |
Input /Output Voltage: 120V AC 60Hz | Casing Material: PC V0 |
Max. Load: 15A / 1800W | Security Mode: WPA/WPA2 |
Connection: Zigbee 3.0 (IEEE 802.15.4) | Operating Temperature Range: 14 ℉ to 104℉ / -10 ℃ to 40℃ |
Applicable Environment: Indoor | Dimension: 2.99 x 1.57 x 1.30 in (76 x 40 x 33 mm) |
Weight: 0.17lbs / 79g | RENOGY SMART RELAY |
Power Supply: 8-30V DC | Load: 250V AC / 30V DC, 16A Max |
Casing Material: PC V0 | Connection: Zigbee 3.0 (IEEE 802.15.4) |
Security Mode: WPA / WPA2 | Applicable Environment: Indoor |
Operating Temperature Range: -4℉ to 104℉/ -20℃ to 40℃ | Dimensions : 0.79 x 1.57 x 1.73 in / 20 x 40 x 44 mm |
Weight: 0.08 lbs/36.6 g | RENOGY DOOR & WINDOW SENSOR |
Connection: Zigbee 3.0 (IEEE 802.15.4) | Applicable Environment: Indoor |
Casing Material: PC V0 | Security Mode: WPA / WPA2 |
Operating Temperature Range: 14℉ to 104℉/-10℃ to 40℃ | Dimensions: 1.85 x 1.06 x 0.53 in (47 x 27 x 13.5 mm) |
Weight: 0.04 lbs/20 g | WARRANTY INFORMATION |
Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty | Accessories: 1-year material and workmanship warranty |
