1000W 12V Pure Sine Wave Inverter
Advanced pure sine wave technology to maximize your system efficiency.

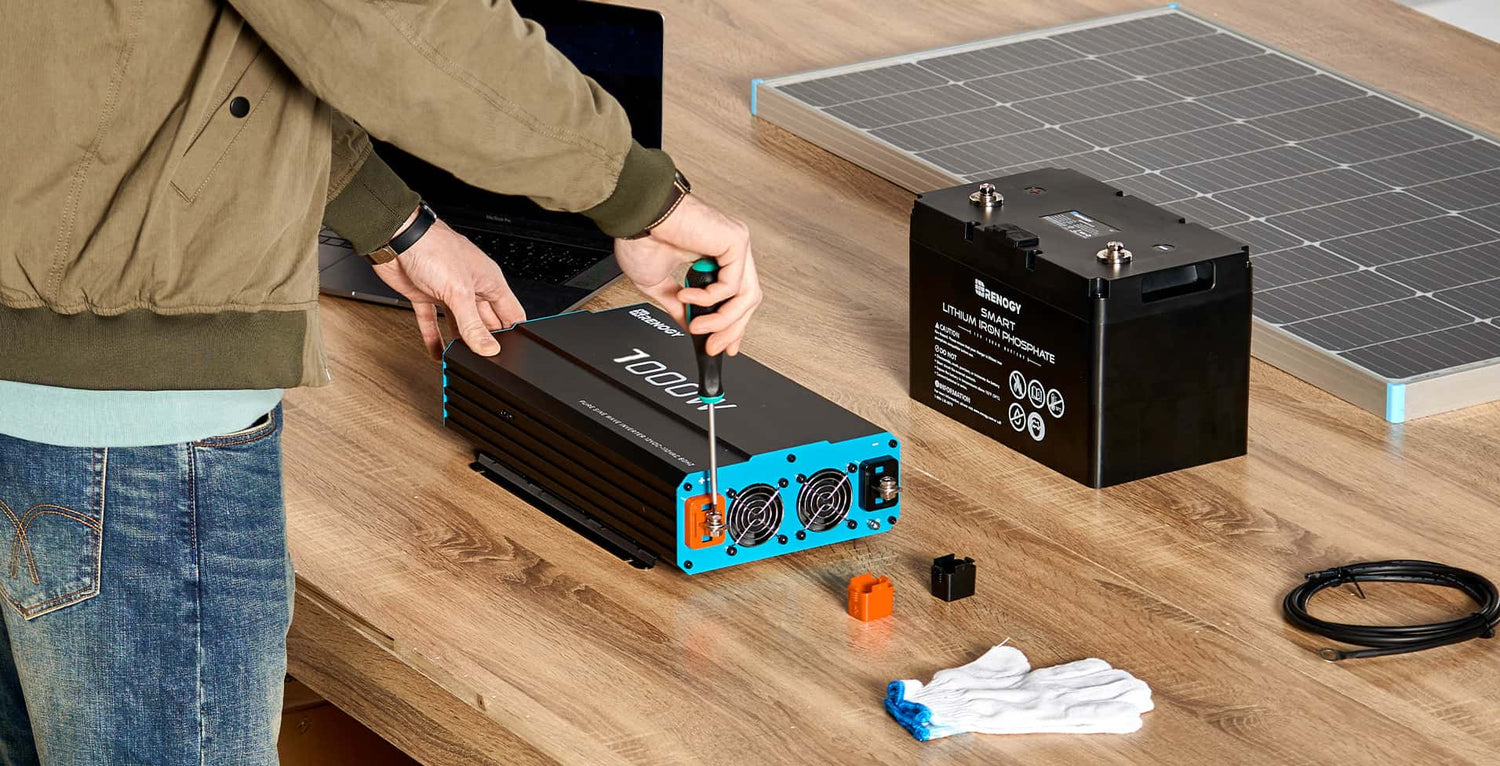

Effortless Installation

Hassle-Free Setup
Whether you're a seasoned solar enthusiast or a solar beginner, our clear instructions ensures that you can start harnessing clean, reliable power without any complications. Empower your off-grid adventure with ease and confidence using the Renogy Inverter.

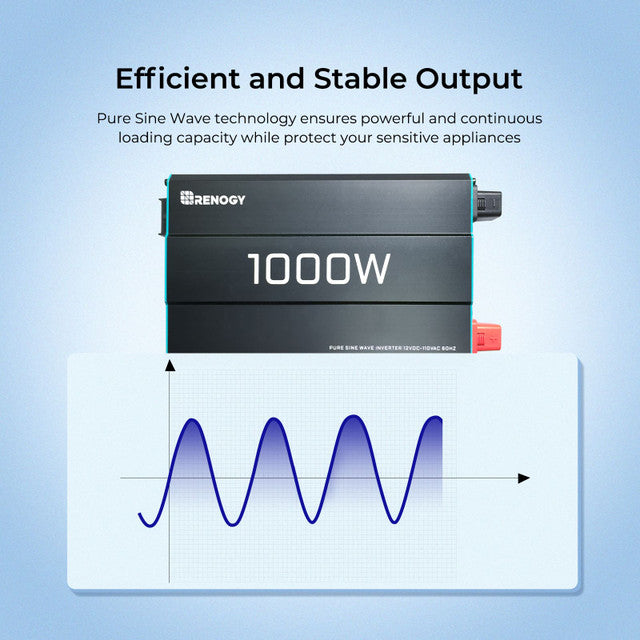

Versatile Pure Sine Wave Power
The pure sine wave output ensures a smooth and stable power supply that mimics the utility grid power, making them highly versatile and compatible with a wide range of electrical appliances. Renogy inverters work seamlessly with sensitive devices without causing compatibility issues or disruptions, prolonging their lifespan and ensuring reliable performance.

Powerful Output
Experience the true potential of 1000W continuous output and a staggering 2000W peak power with the Renogy Inverter. Delivering unparalleled performance, this powerful device ensures that you can confidently run your high-demand appliances and equipment off-grid.
-

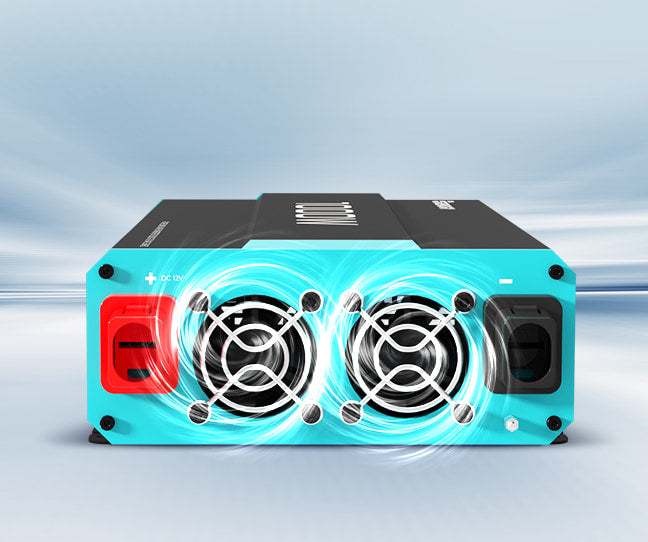

Powerful Heat Dissipation
Operates at peak performance even in extreme temperatures, ensuring your system is always running smoothly and efficiently.
-

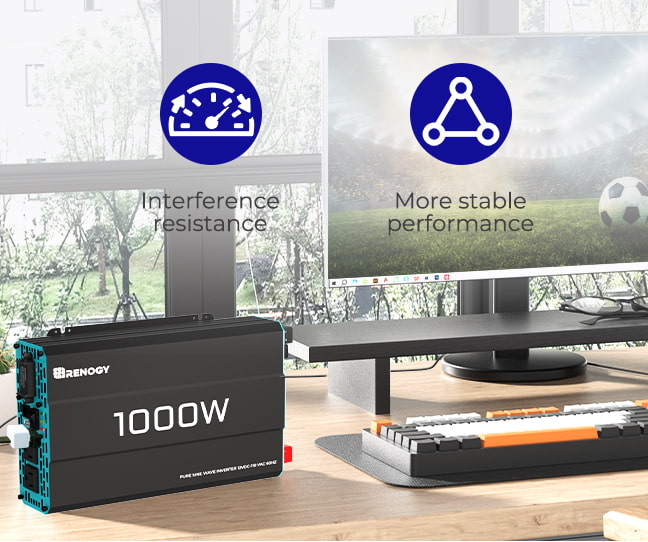

Enhanced Stability
The pure sine wave output ensures a high-quality power supply, free from any interference to signals, delivering smooth and consistent power.
-

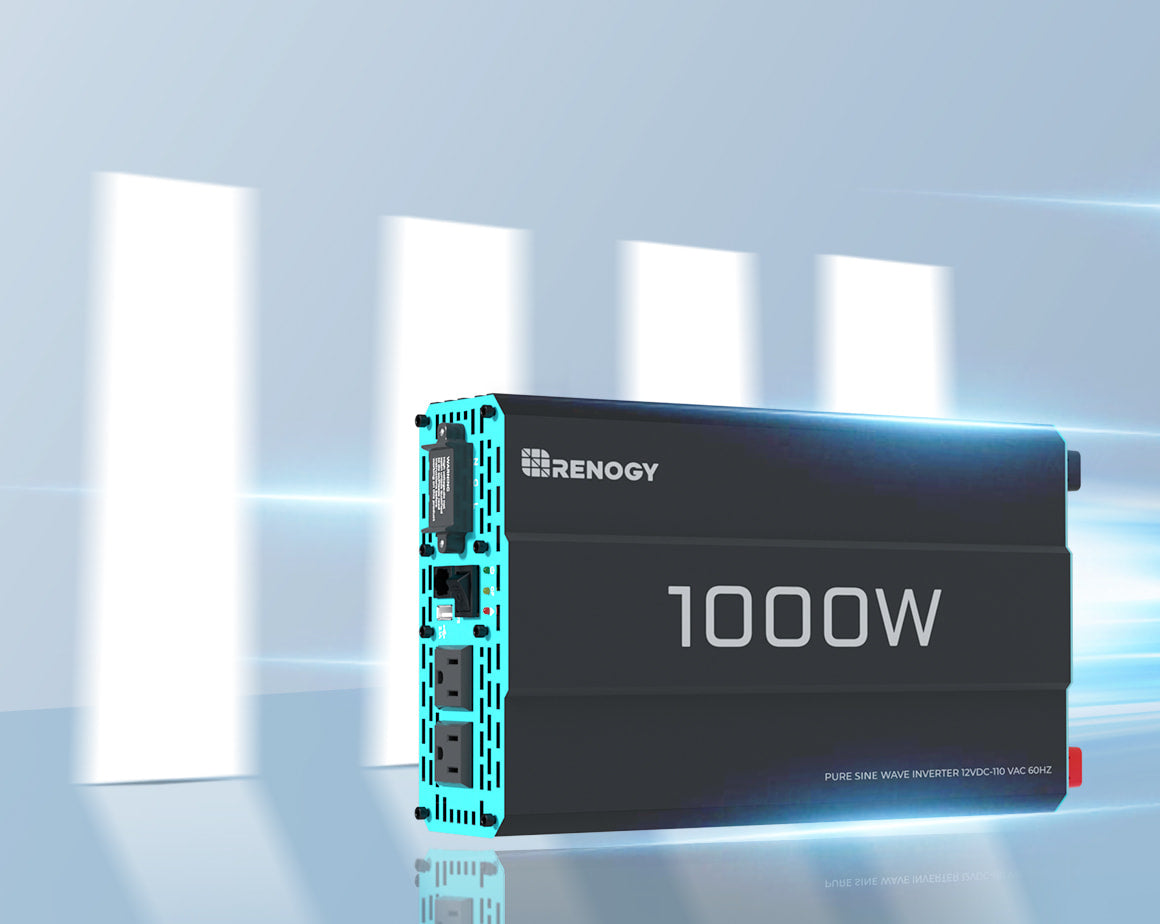

Durable Metal Casing
Built with durable materials and superior craftsmanship to withstand the test of time and harsh conditions, delivering exceptional performance and peace of mind.

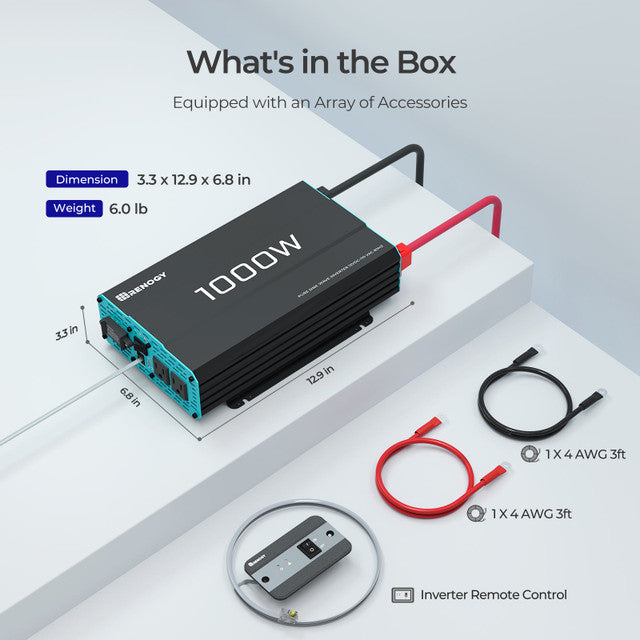

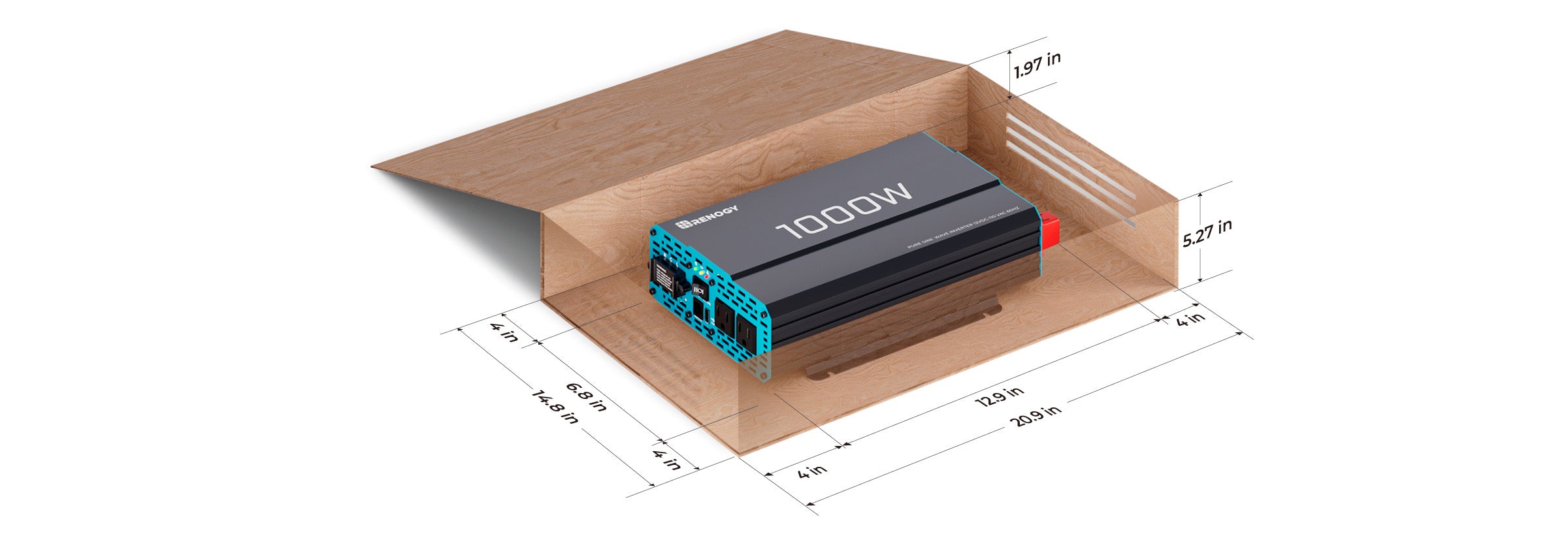

Dimensional Reference Guide
Before installing the inverter, please note that you need to leave about 1.97 in for the top of the inverter; the side with busbars needs to be left at least 4 in.

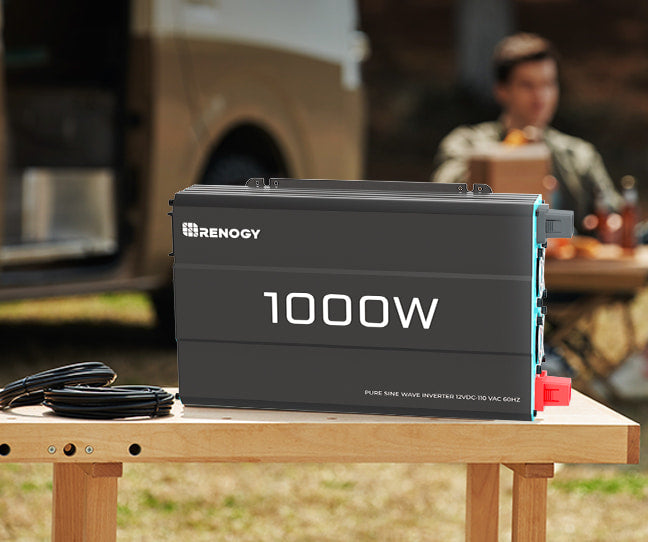

Enabling an Independent Off-Grid Lifestyle
Empower your off-grid life with the Renogy Inverter, and embrace a sustainable, independent lifestyle powered by the sun.
Specifications
1000W 12V Pure Sine Wave Inverter Inverter Output Specifications |
|
---|---|
Continuous Output Power: 1000W | Peak Power Rating: 2000W |
Output Voltage: 120V | Output Frequency: 60 Hz ± 0.1% |
AC Output Sockets: 2 | AC Terminal Block: 1 |

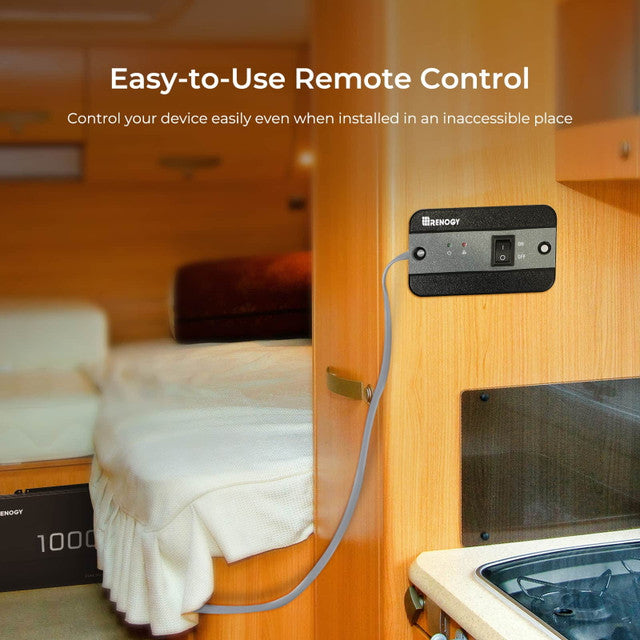

USB Power Port: 5V/2.1A | Power Output Control: AC On/Off Switch, and Remote Control |
Output Waveform: Pure Sine Wave | Nominal Efficiency: > 90% |
Total Harmonic Distortion: < 3% Linear Load < 5% Non-linear Load | |
Mechanical Specifications | |
Dimensions: 12.9 x 6.8 x 3.3 in | Weight: 6.0 lb |

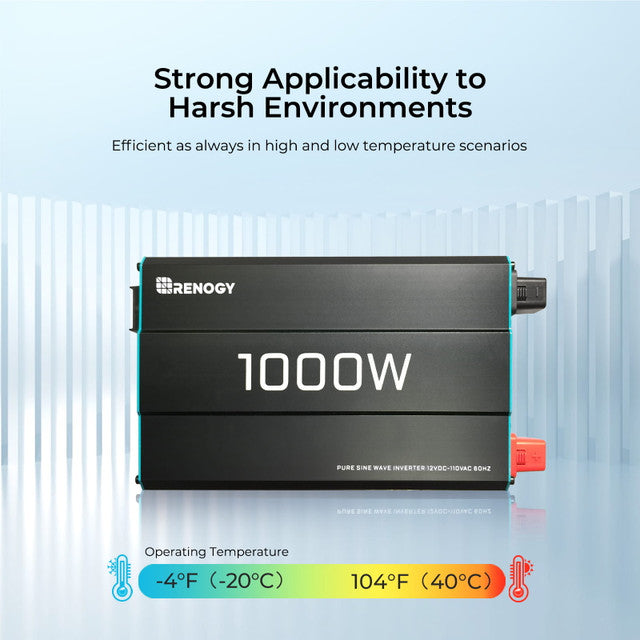

Cooling Fan: Thermally controlled | Operating Temperature Range: -4°F - 104°F |
Input Specifications | |
Nominal Input Battery Voltage: 12V | Battery Terminal Size: M8 |
Low Battery Alarm: 10.5V ± 0.5V DC | High Voltage Alarm: 16V |
Battery Low Shutdown: 10.0V ± 0.5V DC | Over Voltage Shutdown: 16.5V ± 0.5V DC |

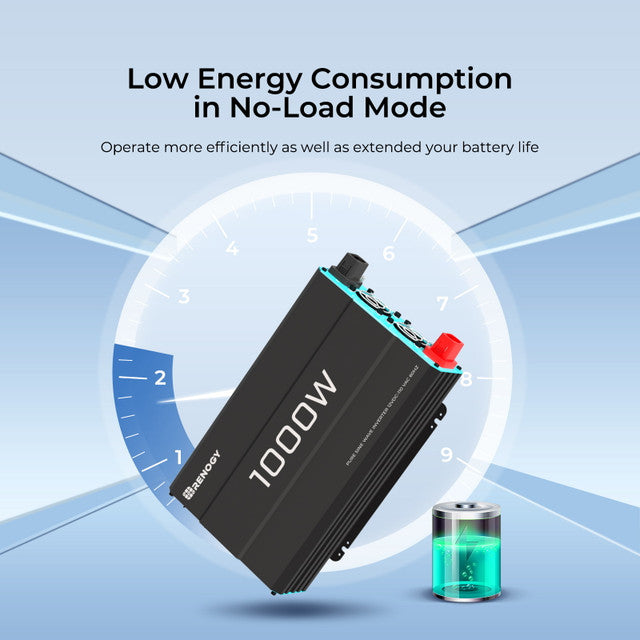

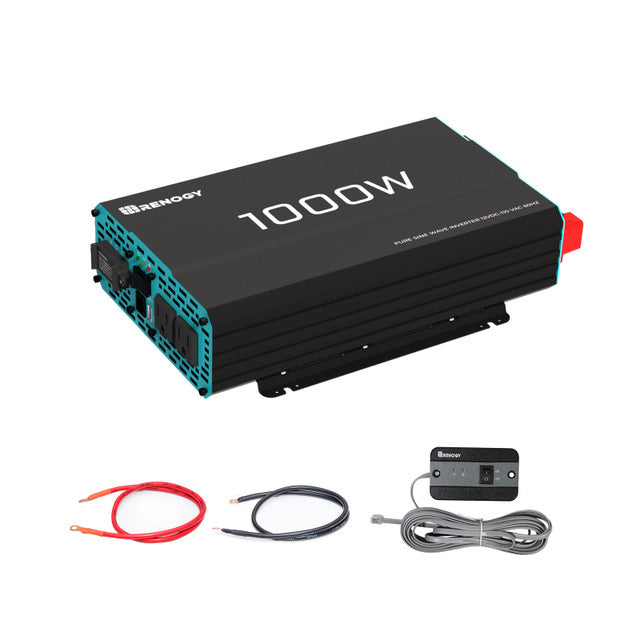

No Load Current Draw: < 1A | Accessories |
Cable: 4AWG 3ft | Inverter Remote Control: 16.4 Ft | Certifications |
ETL Listed to UL 458 and CSA 22.2 NO 107.1-01: YES | FCC Part 15 class B: YES | WARRANTY INFORMATION |
Material and workmanship warranty: 1 Year |
