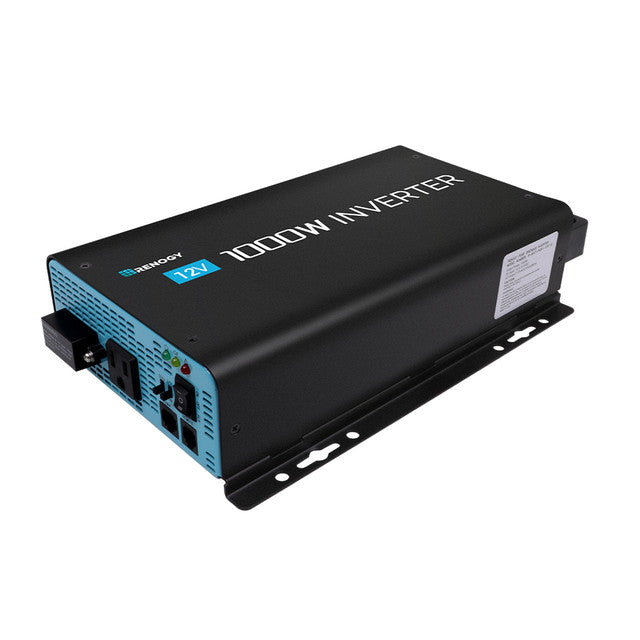

The Renogy 1000W Pure Sine Wave Inverter with Power Saving Mode (New Edition) is perfect for most off-grid systems, whether for a van, semi-trucks, 5th wheels, cabin, or any remote location needing power. The Renogy 1000W Pure Sine Wave Inverter (New Edition) acts as a DC to AC converter that allows you to power your household appliances. It features an ECO power-saving mode which helps conserve your system's energy and even has a switch to change the frequency between 50Hz and 60Hz to suits different requirement. The advanced Renogy pure sine wave technology will protect and extend the life of your electronics and appliances. With its quiet and high inductive loads, there are no strange buzzing sounds when your electronics are turned on and allow them to run smoother, cooler and quieter.

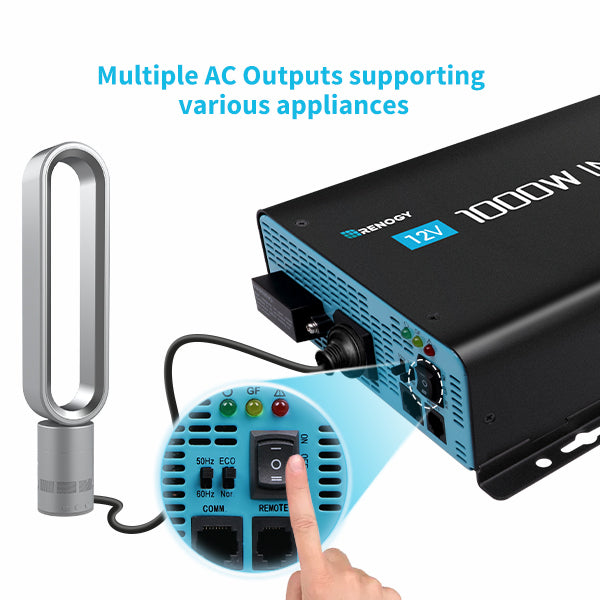

120VAC OUTPUT
1 AC Outlet and 1 AC Terminal Block

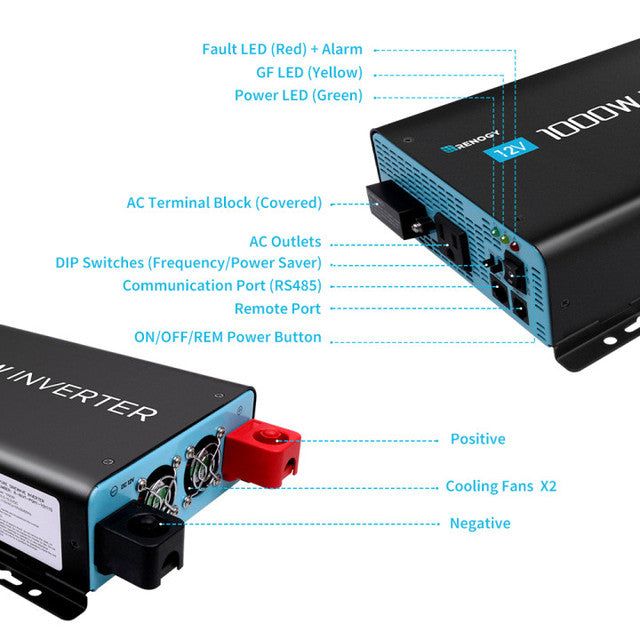

LED indicator to easily monitor the operation status:
*Green - operating
*Yellow - ground fault
*Red - powering down due to overheating, overload, under-voltage or over-voltage.

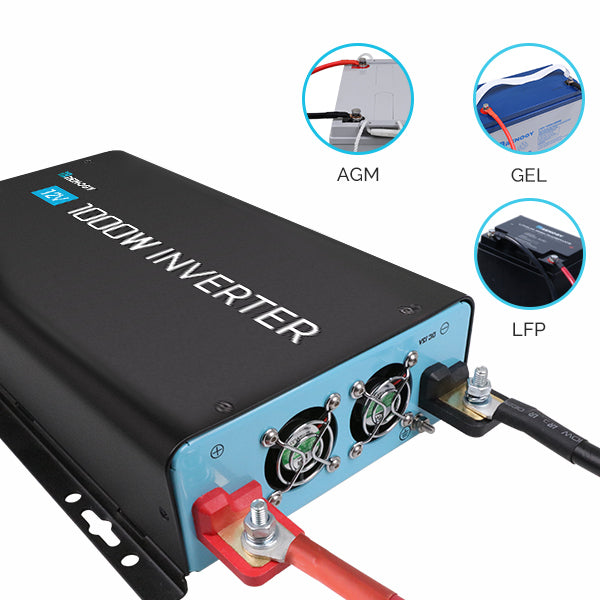

12VDC INPUT
Optimized for 12 VDC system voltage and work perfectly with all type of batteries.
Thermally controlled, high-speed ventilation fans to help keep the inverter running at a low temperature
Both terminals are equipped with caps to ensure your safety.

EASY SET UP

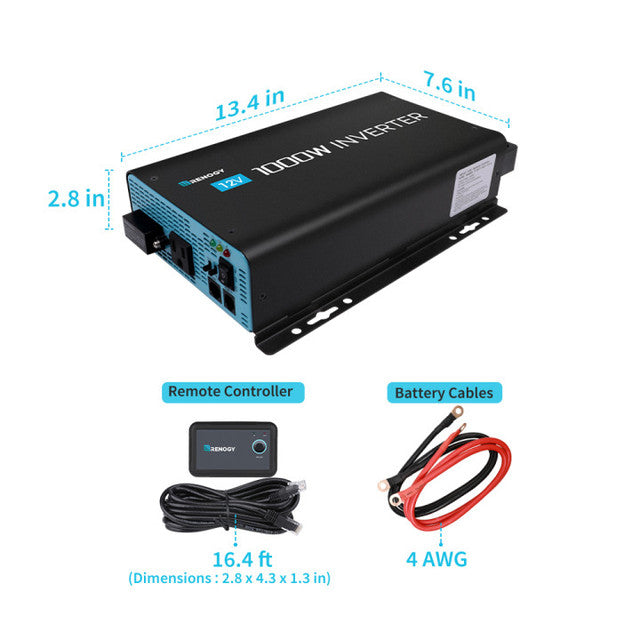

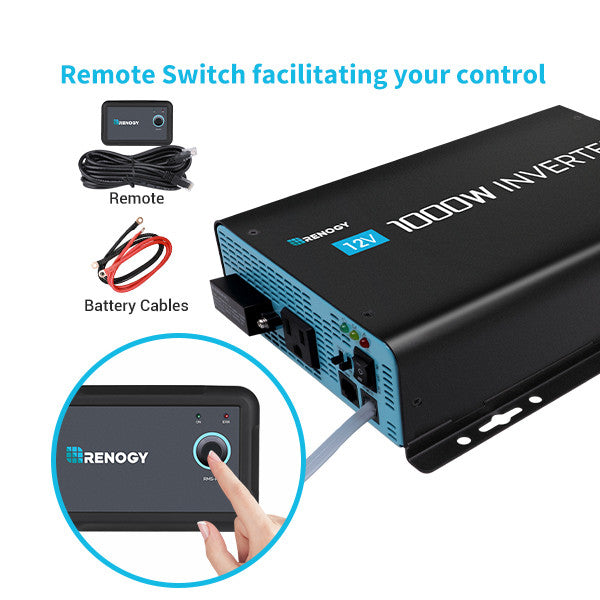

This inverter comes with a 16.4ft wired remote control and 4AWG inverter cables.
Compact design with 13.4 x 7.6 x 2.8 in and 7.5lb will be perfectly fit to limited spaces.

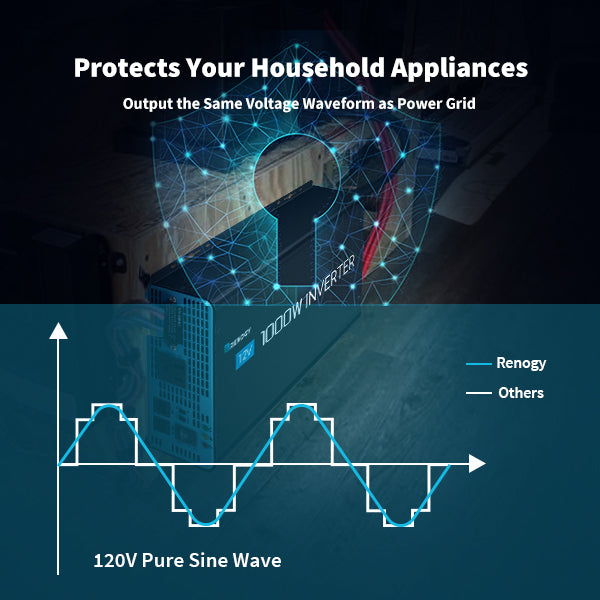

MORE STABLE POWER PROTECT YOUR APPLICANCES
Advanced pure sine wave technology provides power in a way that will protect and extend the life of your electronics and appliances.

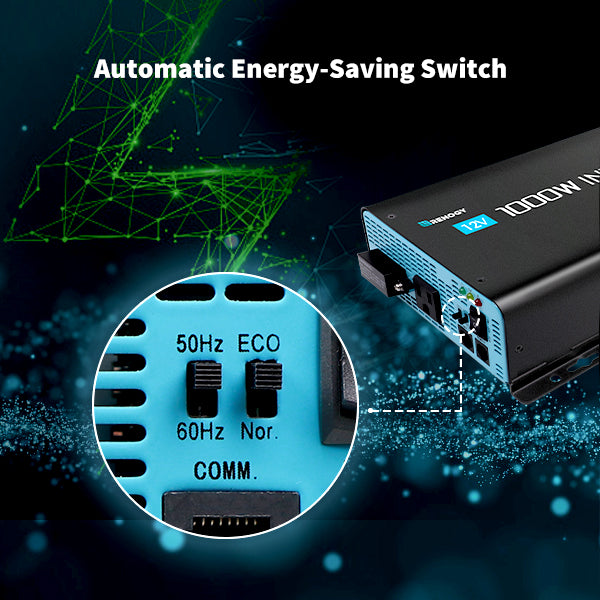

ECO POWER SAVING MODE
The Renogy 1000W Pure Sine Wave Inverter (New Edition) featured a ECO Mode switch, it can automatically converses your energy when switched on.
When the output power is 50W or less, the inverter will in stand by mode. When higher power device connected, it will automatically power the load.

REAL-TIME MONITORING AT YOUR FINGERTIPS

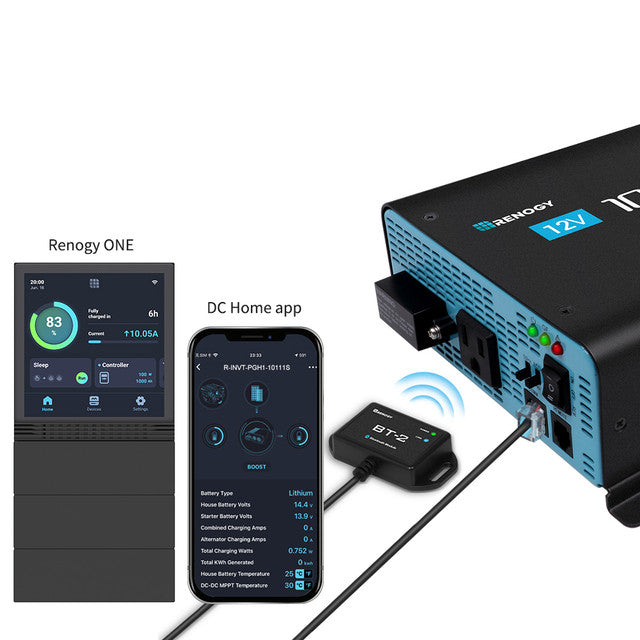

By integrating Renogy BT-2 with your DC Home app, you can enable intelligent energy monitoring that helps optimize energy usage, maximize your system's performance, and ensure reliable power supply.

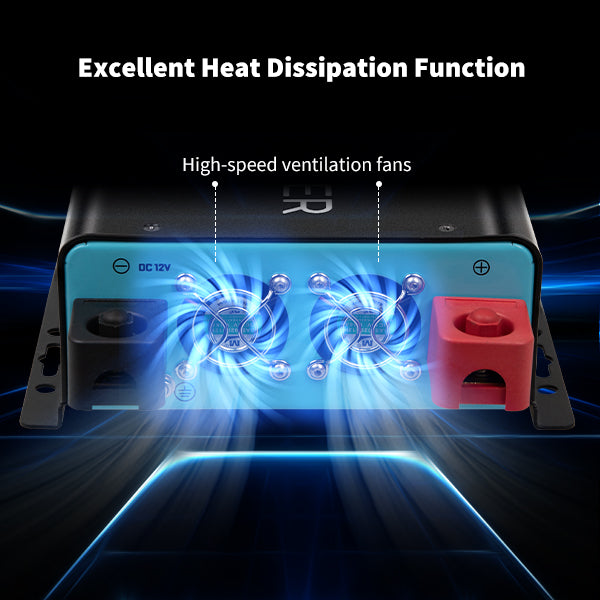

EFFICIENT AND QUIET HEAT DISSIPATION
The Renogy 1000W Pure Sine Wave Inverter (New Edition) is featured with two High-speed ventilation fans allowing efficient and almost noiseless heat dissipation, maintaining cool working temperature for the device.
Specifications
1000W 12V PURE SINE WAVE INVERTER WITH POWER SAVING MODE (NEW EDITION) | |
---|---|
Continuous Power Rating: 1000W | DC Input Voltage: 12V |
Output Frequency (Nominal): 50 Hz / 60Hz | Dimensions: 13.4 x 7.6 x 2.8 in |
Nominal Battery Voltage: 12V | Operating Temperature Range: -4°F - 158°F |
Peak Power Rating: 2000W | AC Output Votage (RMS): 120V |
Waveform: Pure Sine Wave | Weight: 7.5 lb |
Peak efficiency: >90% | Nominal Battery Voltage: 12V |
Total Harmonic Distortion (THD): <3% Linear Load <5% Non-linear Load | Self Consumption: Standby |
Self Consumption: Inverter ON - no load | Self Consumption: Inverter OFF |
Accessories | |
Cable: 4AWG | Inverter Remote Control: 16.4ft (Dimensions: 2.8 x 4.3 x 1.3 in) |
Warranty | |
Material and workmanship warranty: 1 Year |
