Safety every minute, efficiency every day

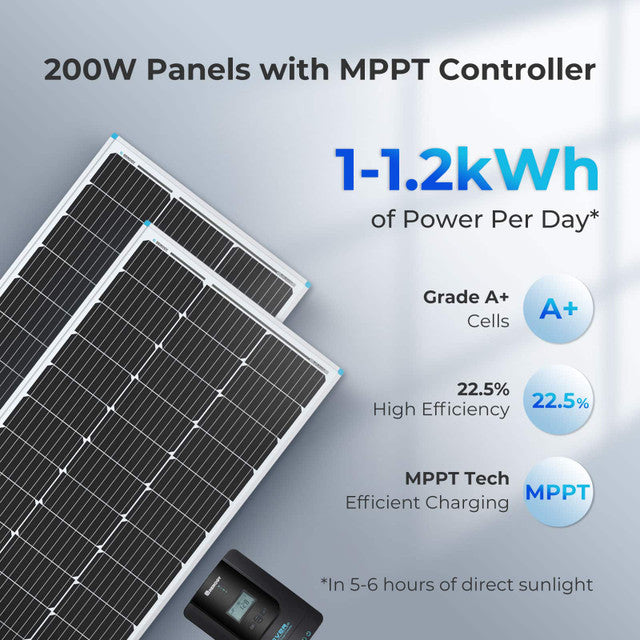

The Renogy Solar Premium Kit offers outstanding safety with a variety of certified accessories, guaranteeing an efficient solar system featuring globally renowned solar panels and a fully certified MPPT Charge Controller.
High-quality PERC solar panels
With a half-cell 9BB design, Renogy's PERC solar panel boasts a 22.5% higher cell efficiency. Crafted with premium materials, including a TPT backsheet and aluminum frame, the panel is protected from harsh environmental conditions over its lifetime.
Charge Controller with 8 built-in protections
The Renogy Rover Solar Charge Controller boasts 8 built-in protections, actively monitoring voltage, current, and load changes. These include overtemperature, low-temperature, reverse current, reverse polarity, short-circuit, overload, overcharging, and overdischarging safeguards for efficient and safe battery charging.
Renogy Fuse Solution
The Renogy Solar Premium Kit offers a reassuring fuse solution, comprising a fuse cable, ANL Fuse, and in-line fuse.
Series Wiring (12V)
To connect panels in series, Solar Y Branch Connectors are not required.
Parallel Wiring (12V)
To connect panels in parallel, you must use the included Solar Y Branch Connectors. Additionally, you'll need one more 10A in-line fuses for parallel wiring. You can purchase a Renogy 10A in-line fuse for this purpose.
4-Step Setup
Specifications
RENOGY 100W MONOCRYSTALLINE SOLAR PANEL | |
---|---|
Maximum Power: 100W | Maximum System Voltage: 600V DC (UL) |
Open-Circuit Voltage (Voc): 24.3V | Optimum Operating Voltage (Vmp): 20.4V |
Short-Circuit Current (Isc): 5.21A | Optimum Operating Current (Imp): 4.91A |
Dimensions: 41.8 x 20.9 x1.4 in | Weight: 14.1lbs |
ROVER LI 20A MPPT CHARGE CONTROLLER | |
Nominal Voltage: 12V/24V DC Auto Recognition | Rated Charging Current: 20A |
Rated Load Current: 20A | Max. Battery Voltage: 32V |
Max. PV Input Power: 260W/12V, 520W/24V | Max. PV Input Voltage: 100VDC |
Operating Temperature: -35°C to +45°C | Max.Terminal Size: 8AWG |
Rated Load Current: 10% to 90% NC | Overall Dimension: 8.3 x 5.9 x 2.3 in |
20FT 10AWG SOLAR ADAPTOR KIT (A PAIR) | |
Length: 20ft | Wire Gauge: 10AWG |
Rating Voltage: 600/1000V | Temperature: -40°F to +185°F |
RENOGY 8FT 10AWG TRAY CABLES (A PAIR) | |
Rating Voltage: 600/1000V | Length: 8ft |
Wire Gauge: 10AWG | Temperature: -40°F to +185°F |
2FT 10AWG ANL FUSE CABLE | |
Length and Wire Gauge: 2ft and 10AWG | Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV |
Temperature: -40°F to +194°F | |
RENOGY 10A IN-LINE FUSE HOLDER W/FUSE | |
Rated Current: 10A | Rated Voltage: 1000 V DC |
Contact Material: Copper, Silver Plated | Replaceable Fuse: Cylindrical PV Fuse (10x38mm) |
ANL 20A FUSE SET | |
Current Rating: 20A | Voltage Rating: 72V |
Interrupt Capacity: 40A | |
SOLAR Y BRANCH CONNECTORS | |
Withstanding voltage: 1000V DC(TUV), 600V(UL) | Temperature: -40°F to +194°F |
Protection Class: Class II | Protection Degree: IP67, mated |
Rated Current: 50A | |
BT-1 BLUETOOTH MODULE | |
Input Voltage: 5V | Communication Range: ≤82ft |
Compatible With: All Renogy Controllers with RJ12 port | Operating Temperature: - 20℃~85℃(-4°F to 185°F) |
MOUNTING Z BRACKETS (SET) | |
Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers | Four Z Shape Solar Panel Brackets: Four Nuts |
WARRANTY INFORMATION | |
Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty | Accessories: 1-year material and workmanship warranty |
