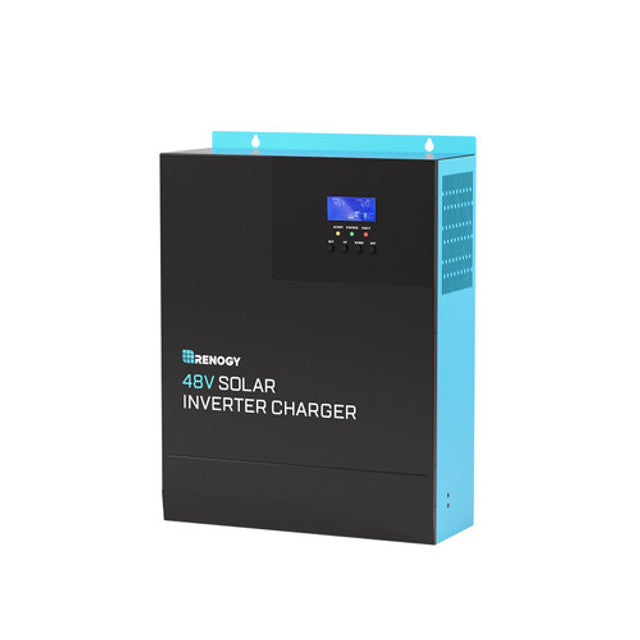

Renogy 48V 3500W Solar Inverter Charger

Our goal is 100 percent customer satisfaction! But in the event something isn’t quite right, we've made the return process super easy.

Order Cancellation

Customers can cancel transactions any time before Renogy begins the shipping process. The shipping process typically begins within 4 hours of placement of the order. If unable to cancel an order before shipping, customers can make returns in accordance with Renogy’s Return Policy.

Returns

Items can be returned within 30 days of delivery. Please note that Renogy will not accept returns beyond 30 days of delivery (this excludes returns for defects or quality issues which can be accepted after inspection and approval by Renogy).

30-Day Return Policy

Customers need to contact Red Chair Time  within 30 days of receiving the item to initiate the return process. To be eligible for return, items must be in the original packaging1, unused, undamaged, unmodified, and have a return authorization number2 provided by Renogy. Proof of purchase must be provided by the customer to begin the return process.

Note: Please note that due to certain transportation regulations, AGM and GEL batteries are not eligible for a 30-day unconditional return or exchange. However, for lithium batteries, we provide a 7-day window for returns or exchanges, allowing for greater flexibility. Upon receiving your package, we kindly advise keeping the original packaging handy for any potential future needs.

Shipping Costs

Shipping costs for product returns will be paid by Renogy under the following conditions:

• Product was damaged during shipping or warehouse handling.
• Product defects
• Incorrect product was delivered
• Product(s) delivered were not ordered by the customer

The customer is responsible for any return shipping costs when product is returned under any other conditions. Costs vary by shipping location.

Renogy does NOT accept returns of items that have been modified in any way. Any modifications will render the Renogy warranty null and void. Any modified products returned to Renogy will be shipped back to the customer at the customer’s expense.

For approved returns, Renogy will provide a prepaid return shipping label3 . Any shipping costs that the customer is responsible for will be deducted from any refund issued to the customer by Renogy.

Refunds

For returns related to customer preferences (not related to defects, shipping damage or wrong product delivered) made within the 30 day return period, a 20% ~ 30% restocking fee will be charged.

After receiving the returned item, Renogy will issue a refund within 7 ~ 10 business days. Red Chair Time will notify the customer by email once the refund has been processed. If the refund isn’t received after 7~10 business days, please contact the Red Chair Time. All returned items will be inspected to insure they meet Renogy’s return policy.

Product Return Process

1. To request authorization for return, contact Red Chair Time. Once customers have contacted Red Chair Time they will be asked to provide the reason for the return, and a receipt or proof of purchase.

2. The Renogy Customer Support Team will determine whether the purchase is eligible for return. After confirming the order is eligible, Renogy/Red Chair Time will issue a Return Material Authorization (RMA) number and a prepaid return shipping label. The customer must clearly mark the RMA number on the package and include the dated proof of purchase with the product.

3. For products being returned due to quality issues, which are beyond 30 days’ return period but within warranty period, Renogy will provide instructions on how to properly package the product to return it safely. Do not ship the product before receiving the proper shipping safety instructions.

Note: Do not return any items without the RMA confirmation from the Renogy/Red Chair Time Customer Support Team. For returns without RMA confirmation, the refund or replacement will not be processed. The return and replace policies for the Renogy Day are subject to the specific requirements of the actual event day. This policy applies only to Renogy products purchased in the United States through authorized sellers and channels.

1 Original packing: it should be the original container or covering which is used to package the product, including all accessories, attachments as well as manual, etc.

2 Return authorization number: customer needs to first contact Red Chair Time for getting the RMA number before returning the order.

3 The prepaid return shipping label: it is provided by the logistics company with which Renogy has cooperation. requirements of the actual event day. This policy applies only to Renogy products purchased in the United States through authorized sellers and channels.

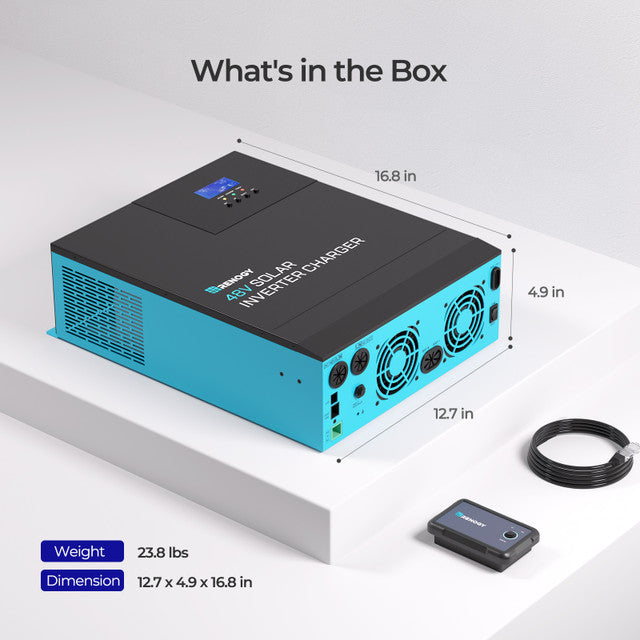

1*48V 3500W Solar Inverter Charger
1*Inverter Remote Control

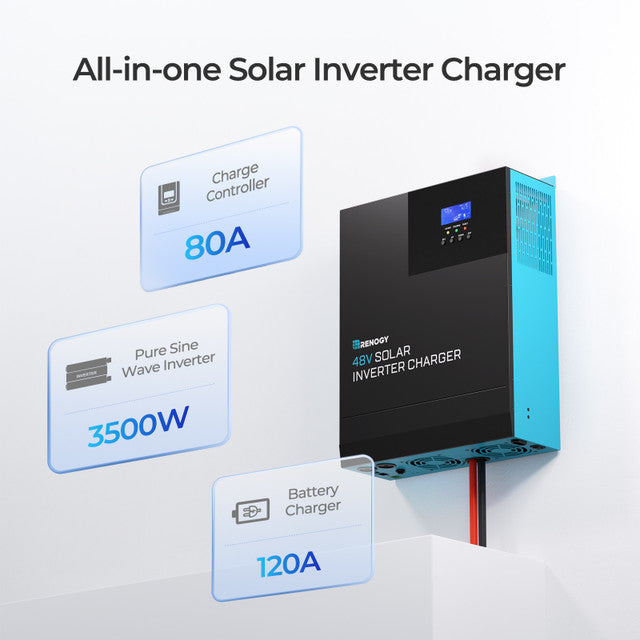

RENOGY 48V 3500W SOLAR INVERTER CHARGER WITH 80A/145V MPPT
Inverter Mode Specifications

Output Waveform: Pure Sine Wave

Continuous Output Power: 3500W

Peak Power Rating: 7000W

Output Voltage: 120VAC±5%

Output Frequency: 50 Hz ± 0.3% 60 Hz± 0.3%

Input Voltage / Rated Battery Voltage: 48VDC (minimum start-up voltage 44V)

Nominal Efficiency: > 90%

Bypass Breaker Current Load: 40A

Idle Consumption: 48W

Power Saver Mode Idle Consumption: ＜25W

Solar Charging Mode Specifications

Charge Controller Type: MPPT

Maximum Input Power: 4400W

Maximum Input Current: 50A

PV Charging Current Range: 0-80A

Recommended Max. PV Open Circuit Voltage: 145VDC

PV Operating Voltage: 60-145VDC

MPPT Voltage Range: 60-115VDC

Short-circuit Protection: Internal Fuse

Wiring Protection: Reverse Polarity

Recommended Wiring: 8 AWG

AC / Grid Charging Mode Specifications

Rated Input Voltage/Input Voltage Range: 120Vac/90 ~ 140VAC ± 2% Adjustable

Frenquency: 50 Hz / 60 Hz (auto detect)

Efficiency: ＞95%

Conversion Time: 10ms

Battery Type: Lead Acid and Lithium Battery

Maximum Charging Current: 40A

Charging Voltage Range: 40-60VDC

Short-circuit Protection: Breakers and fuses

Overcharge Protection: Yes. Automatically alerts and turns off charging after 1 min)

Reverse Flow Protection: Yes

Mechanical Specifications

Dimensions: 16.8*12.7*4.9 in / 426*322*124 mm

Weight: 23.8 lbs /10.8kg

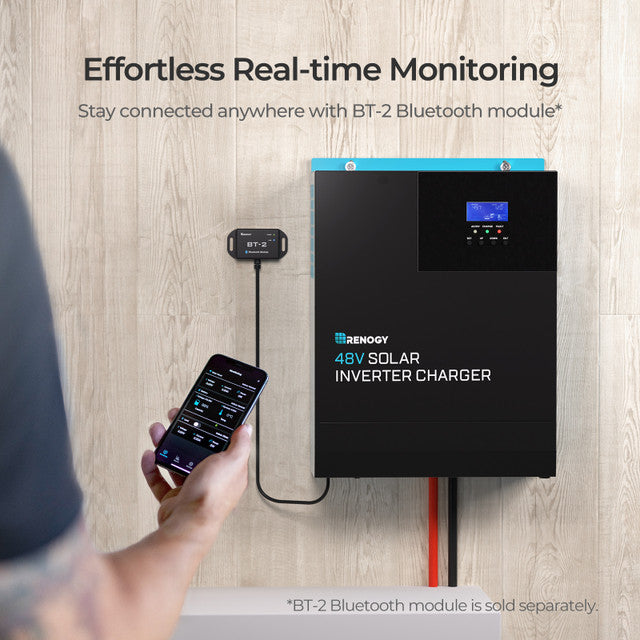

Communication Port: RS485/CAN Communication Port (BT-2 Bluetooth Module)

Cooling Fan: Yes

Operating Temperature Range: 5°F ~ 131°F/ -15°C ~ 55°C

Storage Temperature: -13°F ~ 140°F / -25°C ~ 60°C

Humidity: 5% to 95% (three-layer paint protection)

Noise: ≤60dB

IP Grade: IP 20

Safety Class: I

RENOGY ONE M1

Model: RMS-LP4-G2

Wireless Communication: Wi-Fi (IEEE 802.11b/g/n 2.4 GHz); Bluetooth 2.1/4.2 and Bluetooth LE; Zigbee (IEEE 802.15.4)

Touch Screen: 4 inches (480 x 480p) White backlight with adjustable brightness

Casing Material: PC+ABS V0

Operating Humidity: 0% to 95% RH

Power Supply: Rated Power 3.5W 1.Power Port: 8V DC-16V DC 2.Type-C Port: 5V DC

Ports: 1.USB Type-C (5V DC) 2.RJ45 (CAN & RS485) 3. 2-pin 2.54 mm pluggable terminal block (12V DC)

Color: Black

Weight: 286 g/0.83 lbs

Load: ≤30V DC, 5A Max

Power Consumption: < 2.5W (standby)

Installation:: Flush mounting

Operating Temperature: -20℃ to 50℃ (-4℉ to 122℉)

Operating Altitude: Less than 2000 m above sea level

Connection: Zigbee (IEEE 802.15.4)

Protocols: RV-C/Modbus/Zigbee 3.0

Dimension: 181.8 x 86.8 x 42.2 mm (7.16 x 3.42 x 1.66 in)

Applicable Place: Indoor

CERTIFICATIONS

CE, FCC: Yes

WARRANTY

1-year Prorated Warranty: Yes

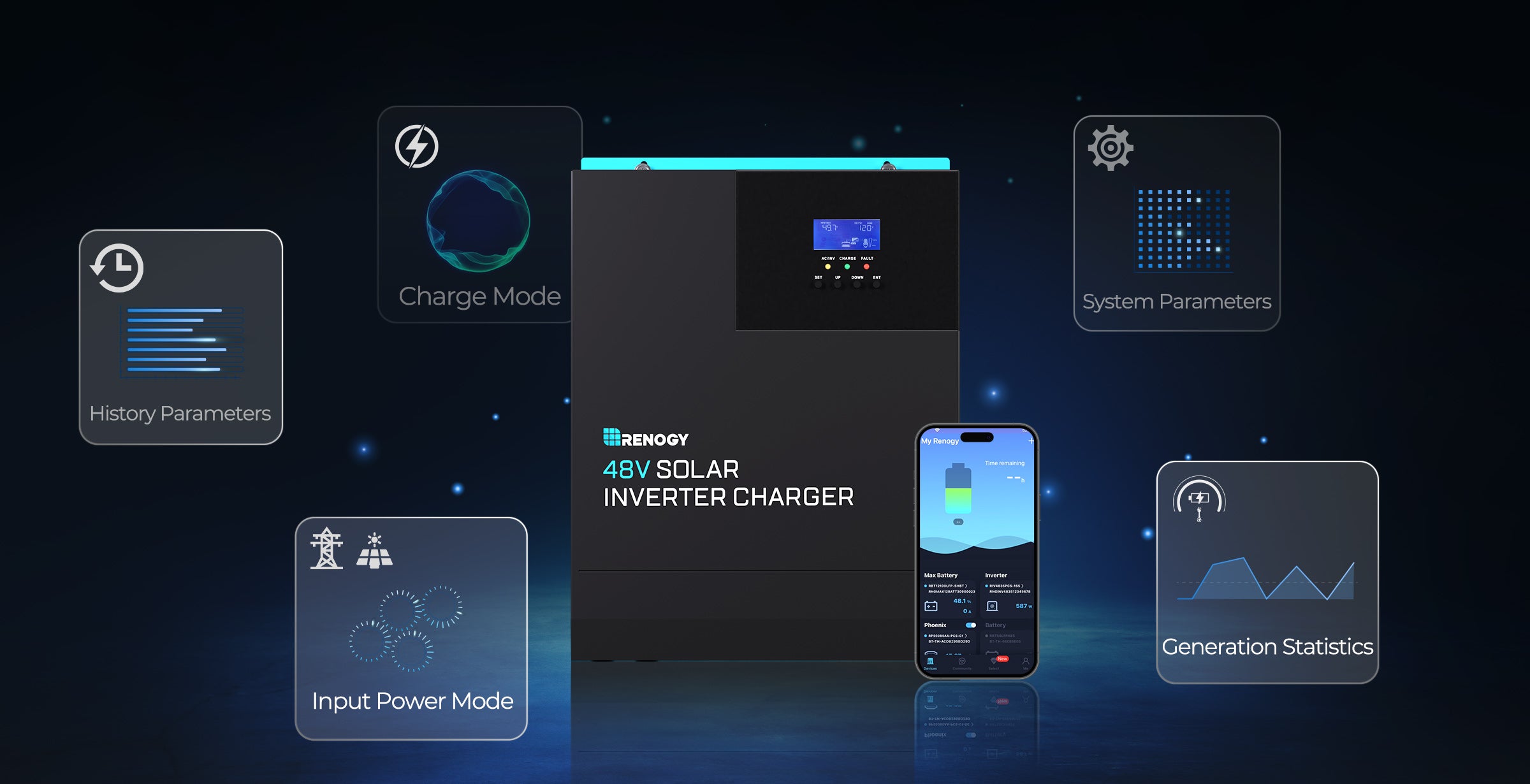

Features_•: Compatible with BT-2 for monitoring via App, Renogy ONE M1/Core.

Features_•: Output 3500W continuous and 7000W surge power.

Features_•: 48W low idle consumption and 25W when the Power Saving Mode.

Features_•: Uninterruptible power supply if other charging ways failure.

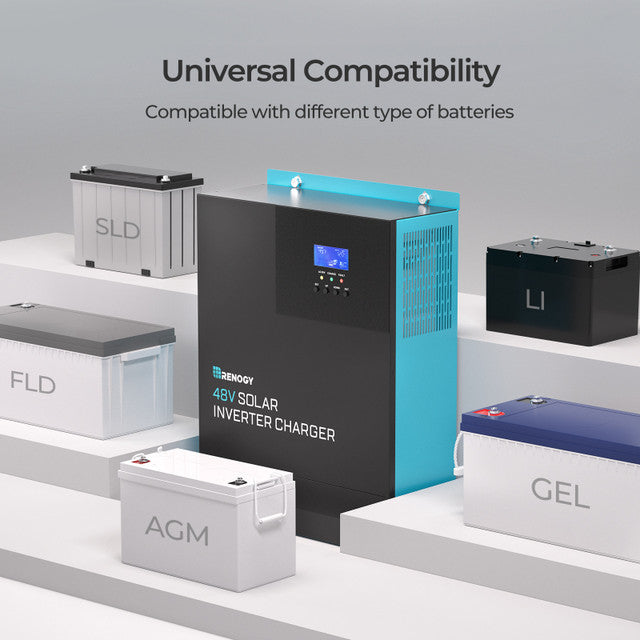

Features_•: Suitable for all types of 48V batteries.
