Rich Solar - 800Ah 12V LiFePO4 Off-Grid Battery Kit | 10.2kWh Deep Cycle Lithium Battery Bank | 4 X ALPHA 2 LITE in Parallel

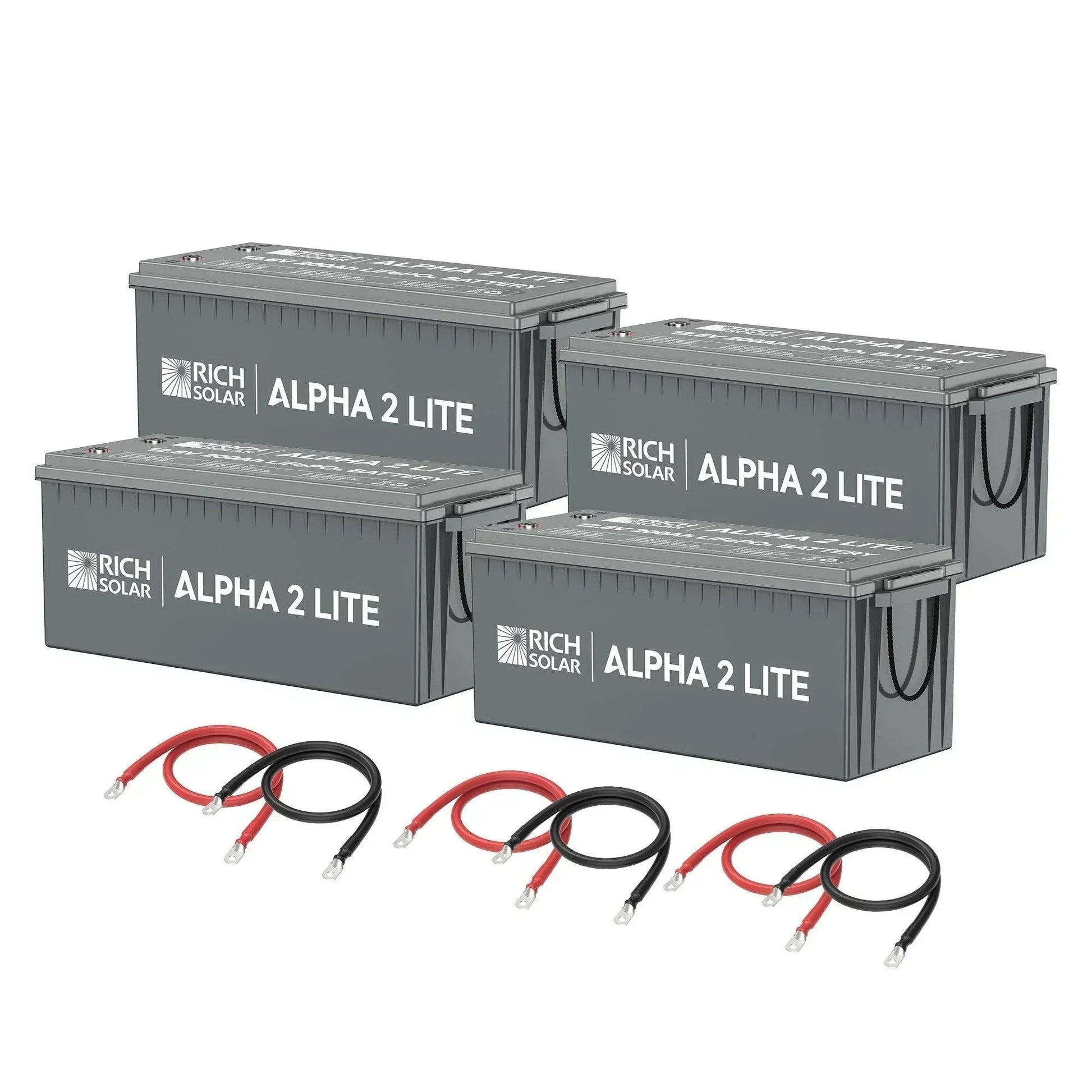

This 800AH 12V 10.2kWh Lithium Battery Bank comes with:
- 4x 12V 200AH LiFePO4 Battery
- 6x 1ft 2 AWG Battery Cable
The ALPHA 2 LITE is a 12V 200 Ah LiFePO4 battery built to be as tougher and more efficient than similar batteries on the market. Manufactured with the finest quality materials, the ALPHA 2 LITE is packed with lithium-iron-phosphate cells for maximum energy efficiency.
With its optimized construction and 200Ah, the ALPHA 2 LITE can provide the energy you need at a moment’s notice. Coupled with its security features and low-maintenance requirements, the ALPHA 2 LITE is the battery for people who need energy storage solutions without fuss.
Features:
-
Premium lithium-iron-phosphate cells
-
> 10 Year lifespan with proper maintenance
-
Unsurpassed high-temperature performance
-
Low maintenance
-
High amp capacity
-
Stable output voltage
-
Little self-discharge
-
Overcharging or discharging protection
-
Overcurrent & short circuit protection
-
High & low-temperature disconnects
-
Charge Voltage: 14.4V
-
Max Charge Current: 200A
-
Max Discharge Current: 200A
-
Battery Dimensions(L*W*H): 20.9x8.1x8.5 in
-
Weight: 52.9 lb
BMS Safety Protection
Every LiFePO4 cell is individually fused with safety and efficiency in mind. If any cells fail, the isolated fuse will prevent any damage to the other cells and allow the battery to function normally.
Other BMS Features include:
- Convenient removable carry handle
- Lightweight
- Short circuit protection
- Over-charge/discharge protection
- Excessive heat protection
Specifications
BATTERY
Nominal Voltage:
12.8V
Nominal Capacity:
200Ah
Minimum Capacity:
199Ah
Cycle Life:
>4000 cycles
Operating Specifications
Capacity:
200Ah
Energy:
2560 Watt Hours
Charge Voltage:
14.4V
Continuous Discharge Current:
200A
Self Discharge:
< 5%/month
Temperature Performance
Charge Temperature:
32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature:
-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature:
14°F-113°F / -10℃~45℃ 90％RH Max (More than 3 months)
Physical Specifications
Battery Dimensions(L*W*H):
20.9x8.1x8.5 in
Weight:
52.9 lb
BMS Operation
Over Charge Protection
Over charge detection voltage:
3.75V±0.03V
Over charge detection delay time:
1000ms±500ms
Over charge recovery voltage:
3.55V (Min 3.40V, Max 3.60V)
Over Discharge Protection
Over discharge detection voltage:
2.20V±0.08V
Over discharge detection delay time:
1000ms±500ms
Over discharge recovery voltage:
2.70V±0.10V
Short Circuit Protection: Yes
Warranty: 5 years warranty
