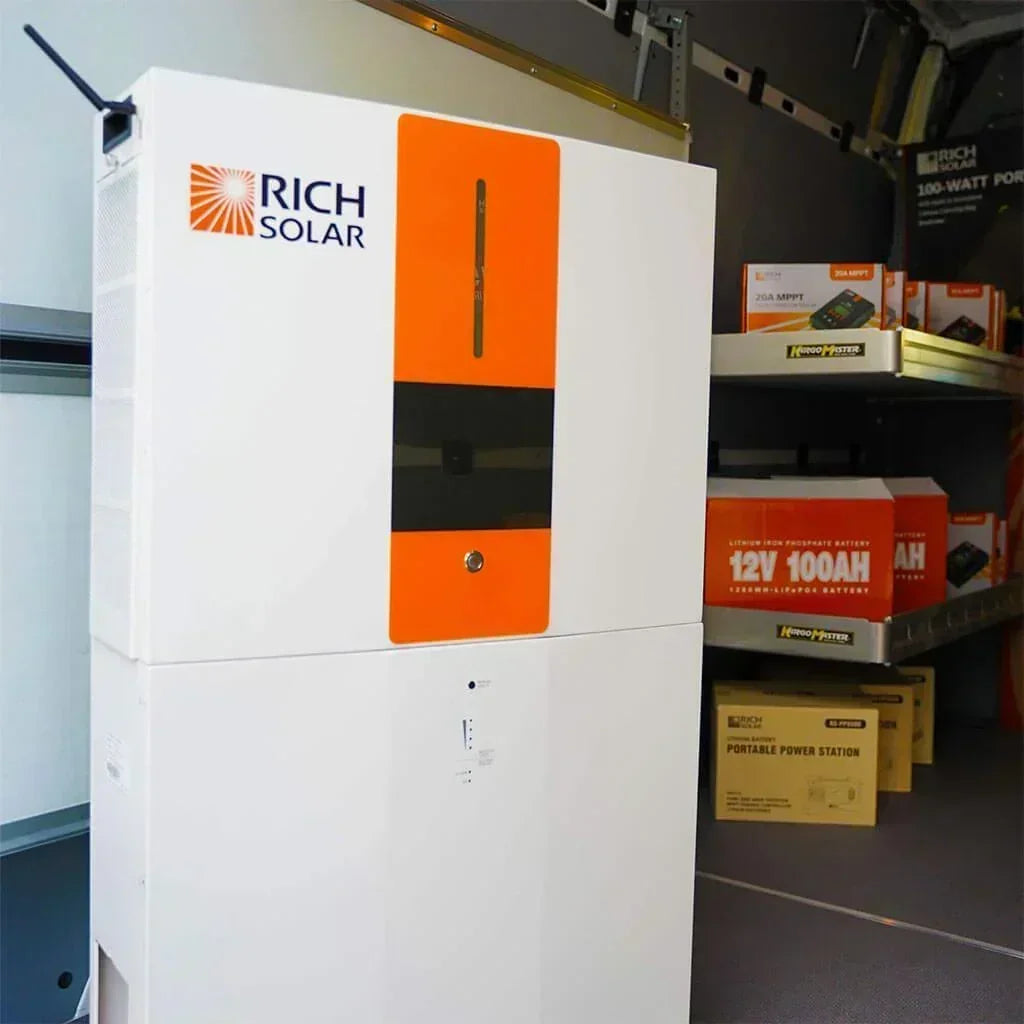

Rich Solar - All-in-One Energy Storage System
🗹 Pure sine wave output
🗹 Off-Grid application
🗹 Programmable supply priority for PV, Battery, or Grid
🗹 User-adjustable battery charging current
🗹 Battery independent design
🗹 Multiple communication for USB, RS232, SNMP, Modbus, GPRS and Wi-Fi

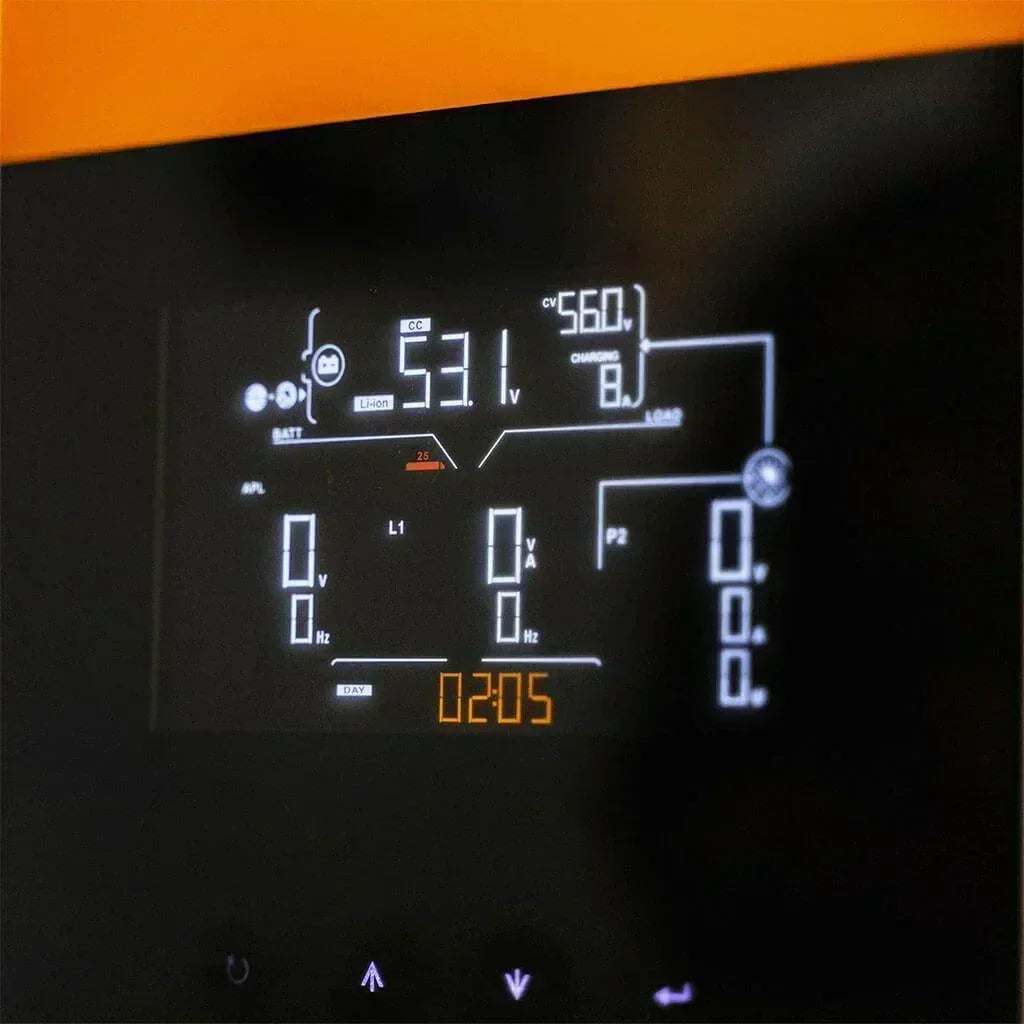

🗹 Monitoring APP (Android and iOS) for real-time status display and parameter control
🗹 Built-in 2 MPPT trackers and AC/Solar charger up to 120A
🗹 Compatible with utility and generator
🗹 Scalable Li-Ion battery expansion
Tech Specs
Specifications
BATTERY INFO
Model:
RS-A10
Maximum PV Input Power:
8000W
Rated Output Power:
6500W
Maximum Charging Power:
6500W
PV INPUT (DC)
MPPT Range @ Operating Voltage:
90 ~ 230 VDC
Maximum PV Array Open Circuit Voltage:
250 VDC/p>
Maximum Solar Charge Current:
120A
Number of MPP Trackers / Maximum Input Current:
2 / 2 x 18 A
AC INPUT
Acceptable Input Voltage Range:
90-140 VAC (For Computers)
80-140 VAC (For Home Appliances)
Maximum AC Input Current:
60A
BATTERY MODE OUTPUT
Nominal Output Voltage:
120 VAC
Maximum Conversion Efficiency (DC/AC):
93%
BATTERY
Nominal DC Voltage:
48 VDC
Maximum Charging Current:
120 A
Dimension:
(D x W x H): 8.4" x 24.4" x 19.7"
Net Weight:
99 lb
Capacity:
5120Wh
Nominal Voltage:
51.2VDC
Full Charge Voltage(FC):
56V
Full Discharge Voltage(FD):
42V
Typical Capacity:
100 Ah
Max Continuous Discharging Current:
120A
Max Discharging Current:
192A at 1 min
Protection:
BMS, Breaker
Float Charge Voltage:
52.5V
Charge Current:
20A (0.2C)
Maximum Charge current:
50A (0.5C)
Standard Charge method:
0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to <0.05C
Inner Resistance:
=20m ohm
ALL IN ONE SYSTEM PHYSICAL
System Dimension (D X W X H):
19.7" x 26" x 49.2"
Net Weight:
287 lb
STANDARD
Compliance Safety:
IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B
Specification & User Manual
ALL IN ONE ENERGY STORAGE SYSTEM
