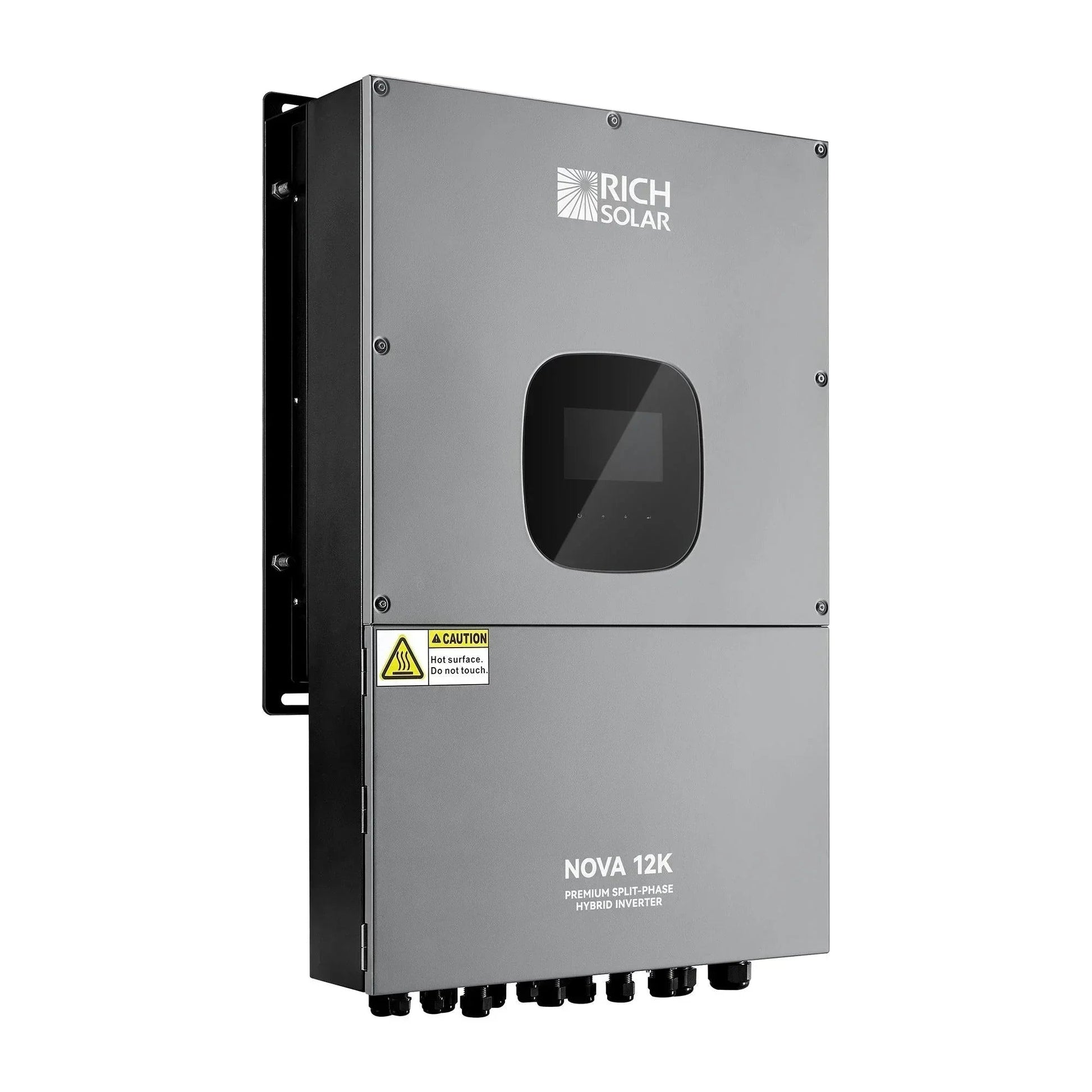

Rich Solar NOVA 12K 12000 Watt 48V Split Phase Hybrid Inverter UL Certified
Rich Solar NOVA 12K 12000 Watt 48V Split Phase Hybrid Inverter UL Certified
Regular price
$2,999.00 USD
Regular price
$3,299.99 USD
Sale price
$2,999.00 USD
Unit price
per
Shipping calculated at checkout.
Why We Call It Red Chair Time ❤️ - Click to Read
Up north at the lake, life was simple—fishing, boating, bike rides, and sun-soaked afternoons. But the heart of it all was my mother, who loved nothing more than relaxing on the patio in her Tall Red Shellback Adirondack Chairs, surrounded by family and friends.
When she lost her battle with cancer in 2023, I started Red Chair Time to honor her and help others still fighting. Those chairs symbolized comfort, connection, and peace—and now, every piece we sell carries that spirit forward.
This isn’t just about selling and living the lake life. It's about a life with purpose. A portion of every purchase supports cancer research, because our mission is personal. We’re here to create beautiful spaces—and to fund hope.
Thank you for visiting!
__________________________________________________
When she lost her battle with cancer in 2023, I started Red Chair Time to honor her and help others still fighting. Those chairs symbolized comfort, connection, and peace—and now, every piece we sell carries that spirit forward.
This isn’t just about selling and living the lake life. It's about a life with purpose. A portion of every purchase supports cancer research, because our mission is personal. We’re here to create beautiful spaces—and to fund hope.
Thank you for visiting!
__________________________________________________

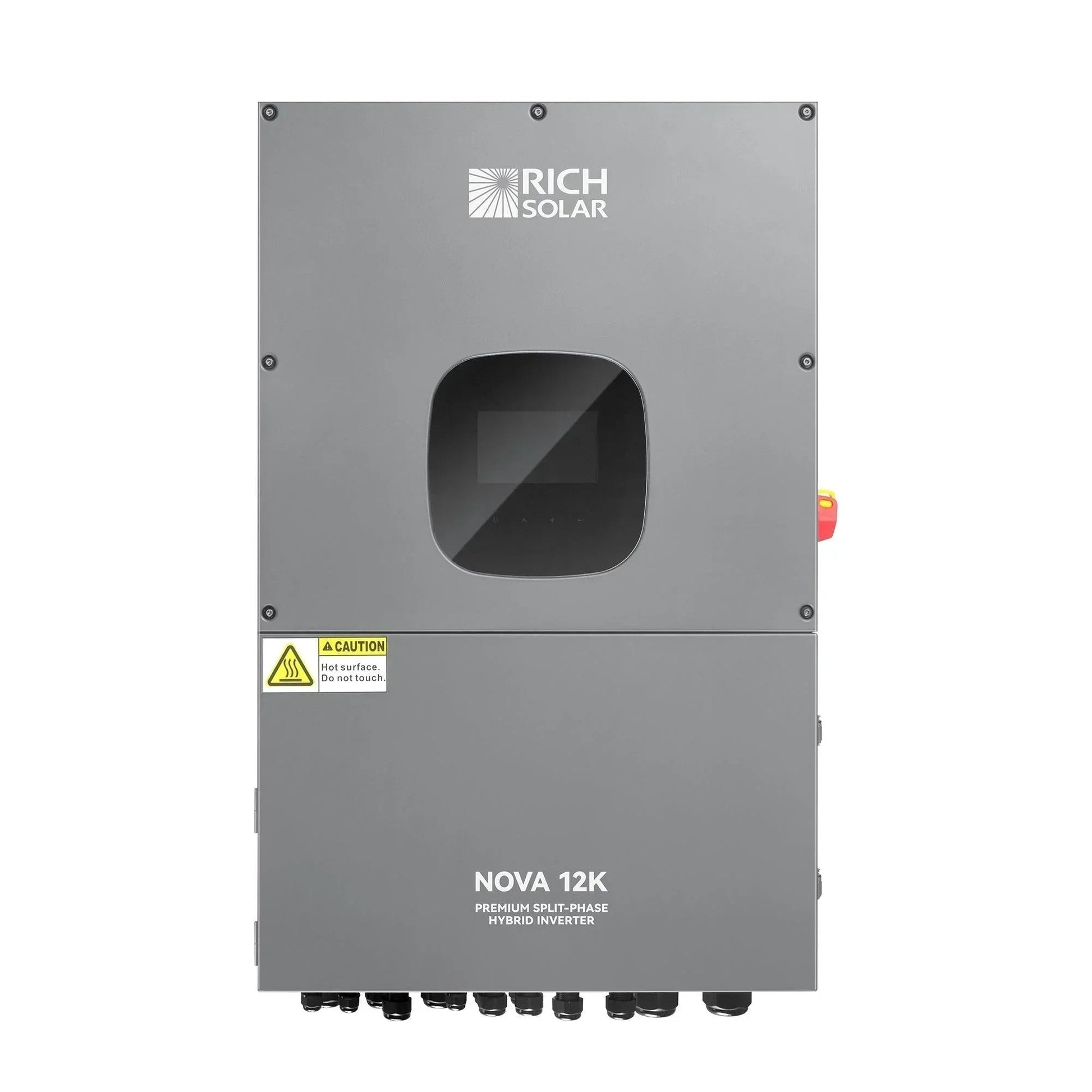

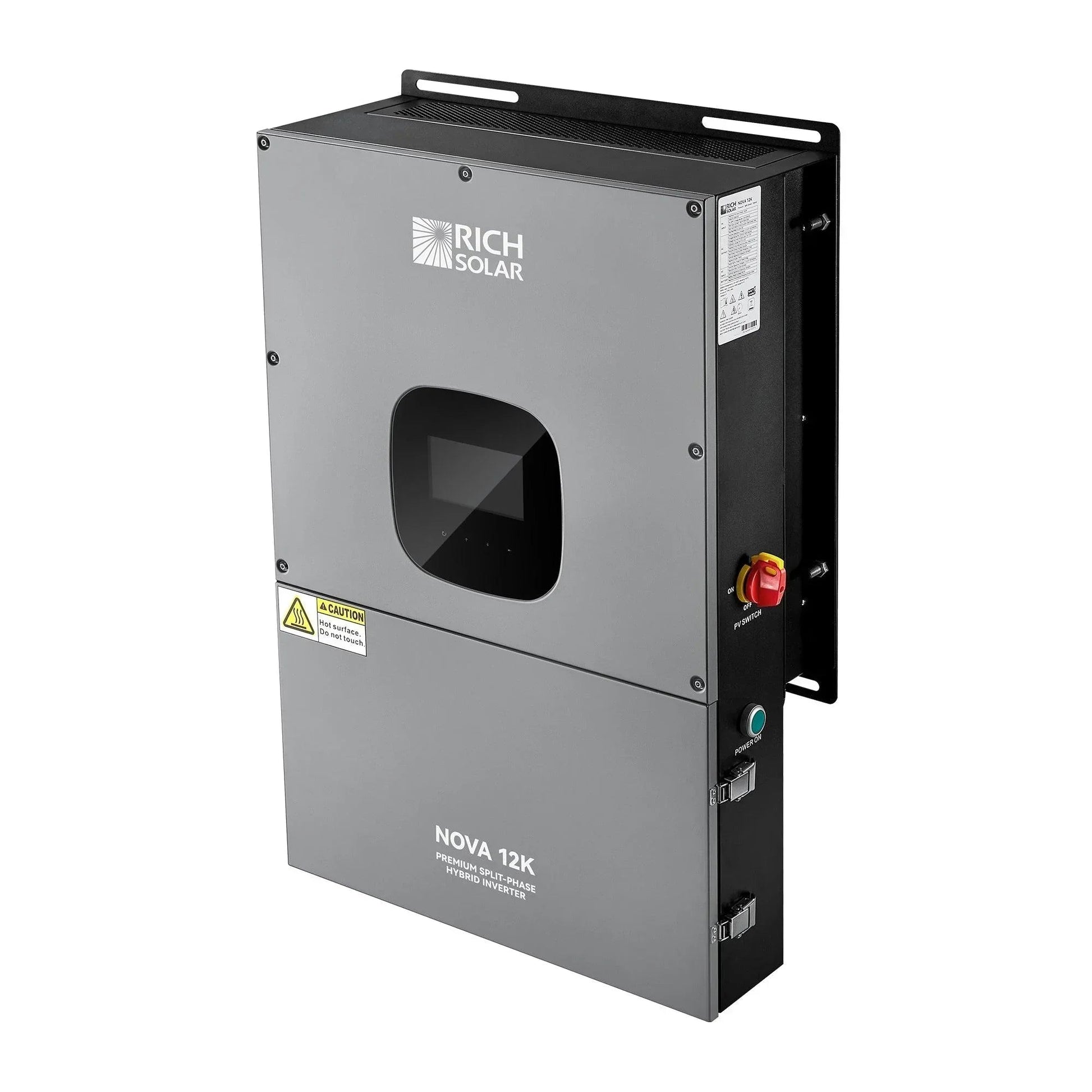

NOVA 12K | 12000 Watt 48V Split Phase Hybrid Inverter | 12000W PV Input, 10000W Continuous Output 120/240V | UL Certified
FEATURES
- Support multiple input & output - Split phase 208/240VAC or single

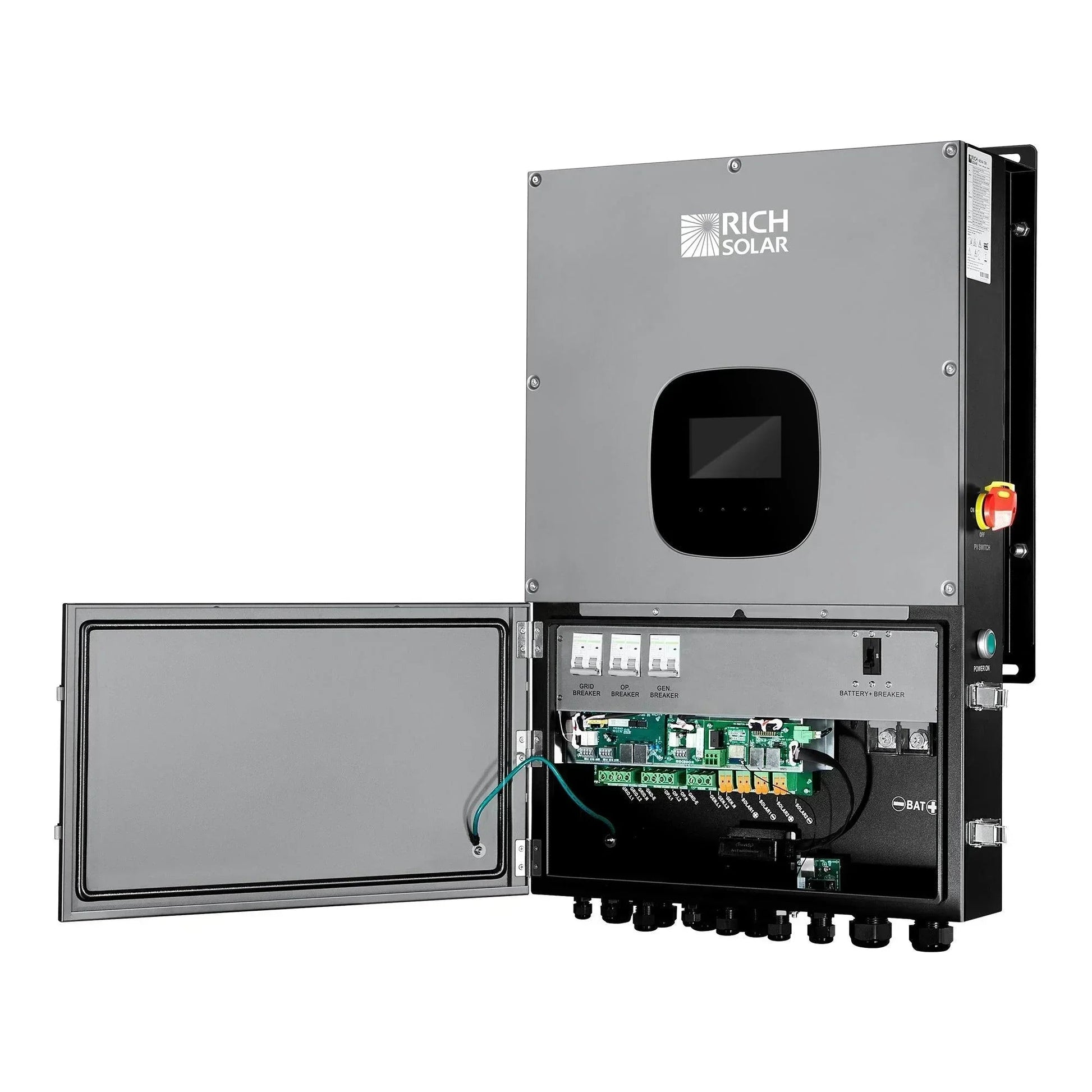

phase 230VAC. - Door-type cable compartment.
- Built-in 300A DC breaker and 60A AC breaker.
- Built-in AC coupled function.
- Built-in Wi-Fi for mobile monitoring (APP is available).
- Accepts second input power source, generator input compatible.
- Built-in arc fault detection (AFD) and rapid shutdown (RSD).
- External CT sensor to guarantee 100% self-consumption.
- Built-in communication port for BMS (RS485).
- User-adjustable charging current and voltage.
- Parallel operation up to 6 units.
SPECIFICATIONS
Maximum PV Input Power: 12000W
Parallel Capability: 6 units
INPUT
- Maximum PV input Power: 12000W
- Maximum DC Voltage: 600VDC
- Start-up Voltage/initial Feeding Voltage: 125VDC/160VDC
- MPP Voltage Range: 120VDC-550VDC
- Number of MPPT Trackers/Maximum Input Current: 2/18A
OUTPUT
- Rated Output Power: 10000VA/10000W
- Nominal Output Voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
- Output Voltage Range: 105.5-132VAC per phase
- Nominal Output Current: 41.5A per phase
BATTERY
- Battery DC Voltage Range: 40-62VDC / 48VDC
- Maximum Solar Charging Current: 200A
- Maximum AC Charging Current: 200A
- Maximum Charging Current: 200A
OPERATING ENVIRONMENT
- Operating Temperature Range: -25°C to 60°C(>45°C derating)
- Protection Degree: IP 65
- Communication Port: RS232, RS485, WI-FI, USB
PHYSICAL

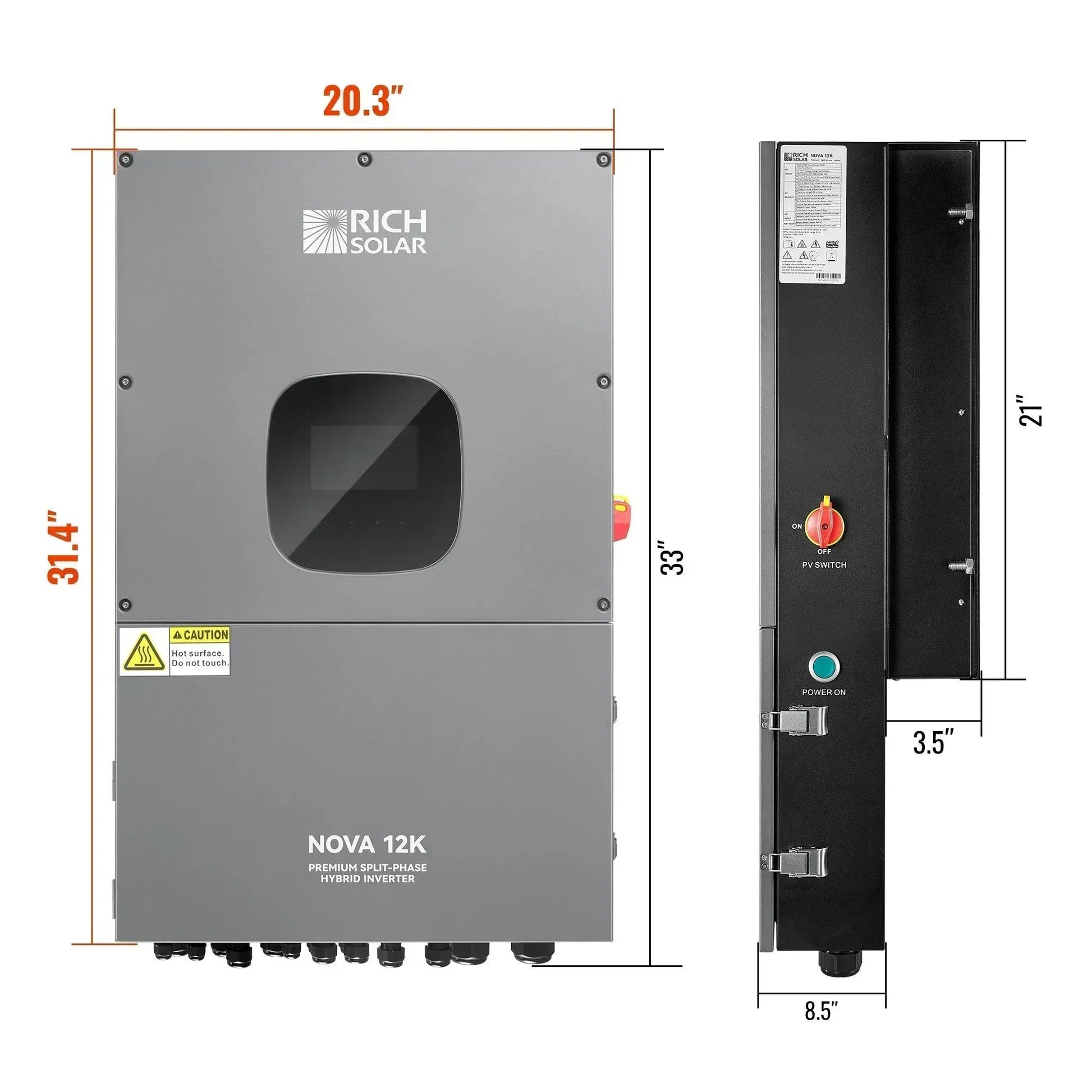

- Dimension (DxWxH): 8.5x20.3x28.1in / 215.5x515x715mm
- Net Weight: 99.2lb / 45kg
CERTIFICATE
- UL 1741SA, UL 1741SB, CSA 22.2.107.1, CEC
